THE COMPLETE PRODUCT CATALOG
The right part.
For every connection.
Explore 67 product families across solar mounting and industrial fastening. Select a product for its features, specification requirements and reference images.
Clamps & Roof Attachments
Module clamps, roof interfaces and pressure plates for matching photovoltaic mounting systems.
3 imagesClamps & Roof Attachments

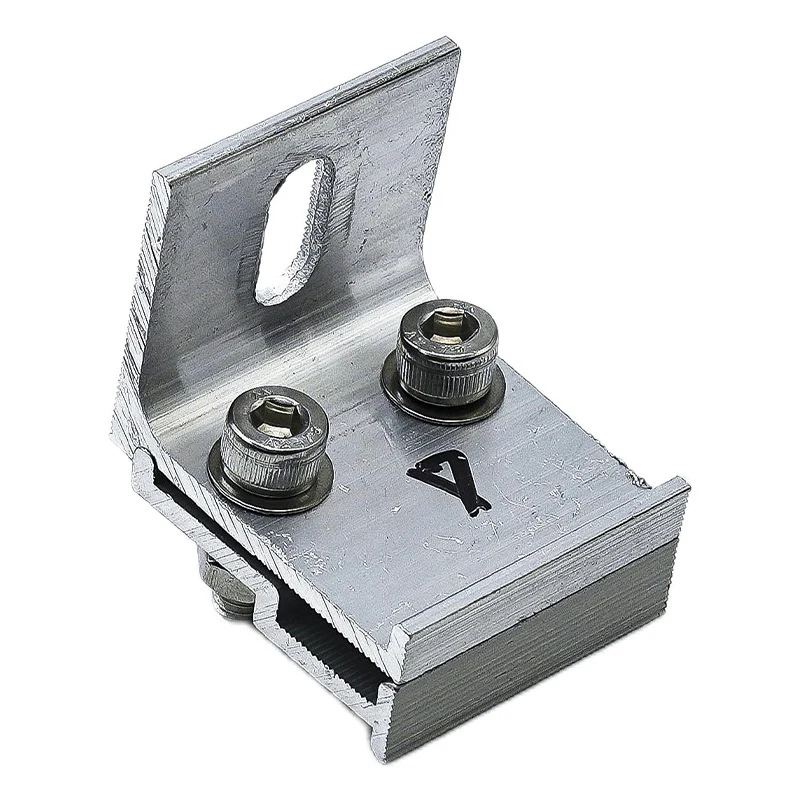

Standing Seam Roof Clamps
JINSHANG standing seam roof clamps connect compatible PV mounting hardware to compatible standing-seam roof profiles. The supplied images show D-type and F-type clamp forms, slotted connection plates and two bolt sets for each pictured variant. Roof seam profile, clamp type, fastener configuration, materials and project loading must be checked against the roof manufacturer’s guidance, the selected product drawing and the PV system design before ordering.
Product details ↗
2 imagesClamps & Roof Attachments

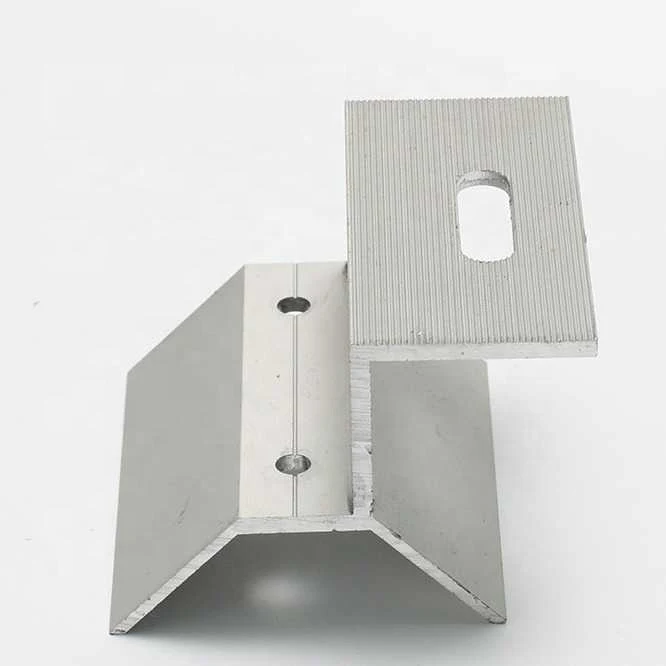

T-Profile Roof Clamps
JINSHANG T-profile roof clamps provide a shaped interface for connecting PV mounting hardware to a matching T-shaped metal roof profile. The supplied photographs show a raised plate with an elongated slot and a folded lower section with fixing holes. Match the exact roof profile and clamp orientation before specifying. Confirm slot and hole dimensions, fastener set, material and surface finish, and design loads against the approved project drawing and quotation; this record does not specify a compatibility range or rated load.
Product details ↗
1 imageClamps & Roof Attachments

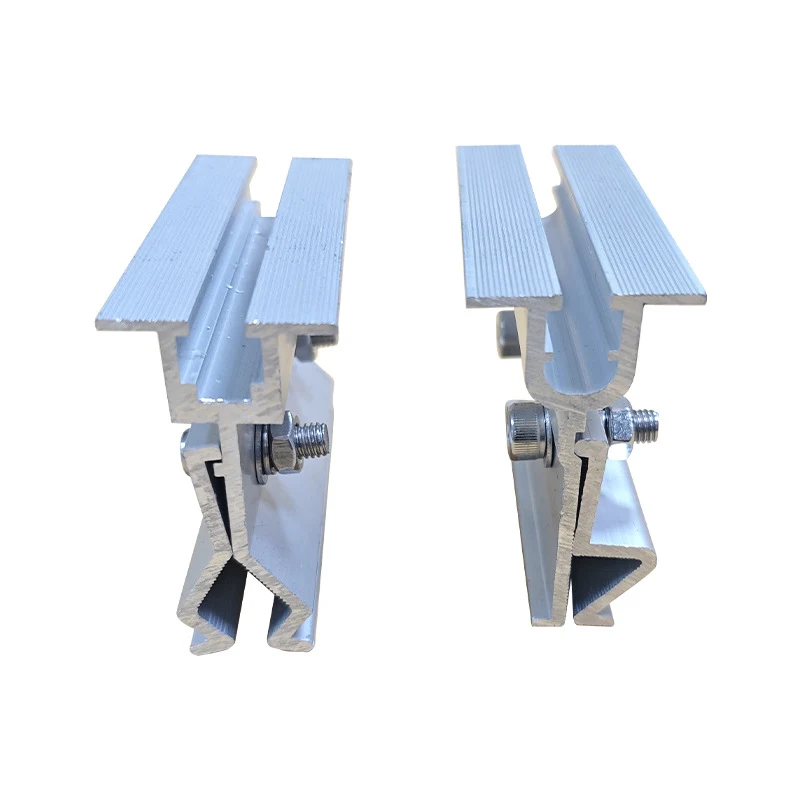

Integrated Roof Clamps
JINSHANG integrated roof clamps combine a roof gripping element and an upper attachment section in one assembly for compatible metal roof PV mounting and roof-to-rail connections. Paired examples are shown. Roof profile, upper connection size, material, and fastener set are confirmed in the drawing or quotation.
Product details ↗
1 imageClamps & Roof Attachments
Panlong Profile Clamps
The product shown has a stepped upper profile with a longitudinal channel, an open underside, a triangular hollow section visible at the end face, and a projecting side flange. Material grade, dimensions, finish, mating components, intended application, load capacity, and applicable standards are subject to confirmation against an approved drawing or quotation.
Product details ↗
1 imageClamps & Roof Attachments

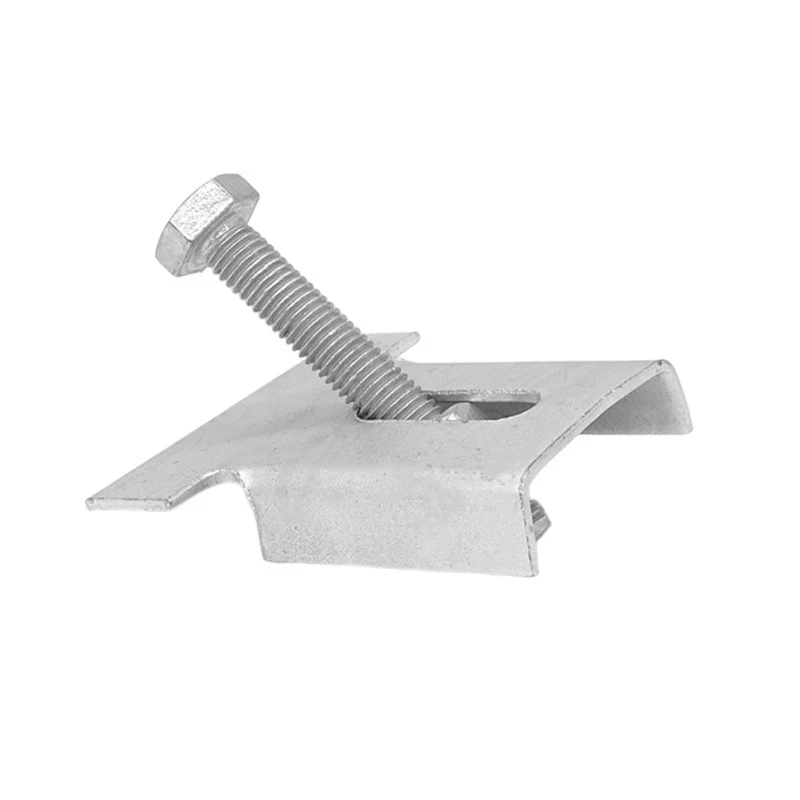

Single-Hole Pressure Plates
JINSHANG single-hole pressure plates clamp a matching solar support section with a central bolted connection. The folded pressure-plate shape carries one central fastening position, and the bolt assembly is shown. Plate width, thickness, bolt size, and mating section are confirmed in the drawing or quotation.
Product details ↗
1 imageClamps & Roof Attachments

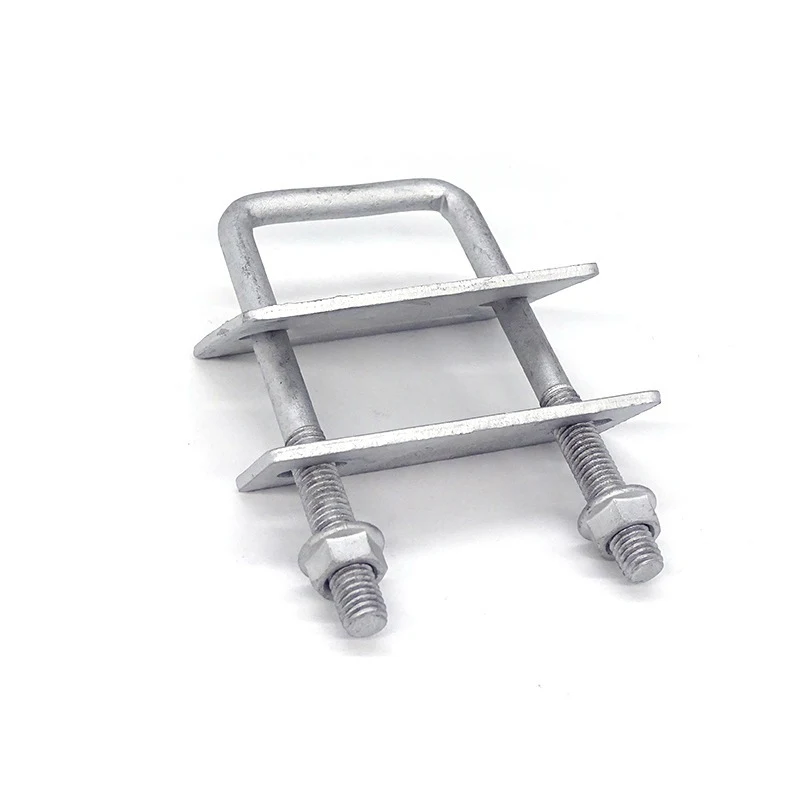

Double-Hole Pressure Plates
Bridge a support section using two fastening positions. The double-hole pressure plate uses a bridge-style body with a parallel fastening layout and two-bolt assembly for PV support connections and two-point clamping assemblies. Bolt spacing, plate thickness, section width, and bolt grade are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageClamps & Roof Attachments

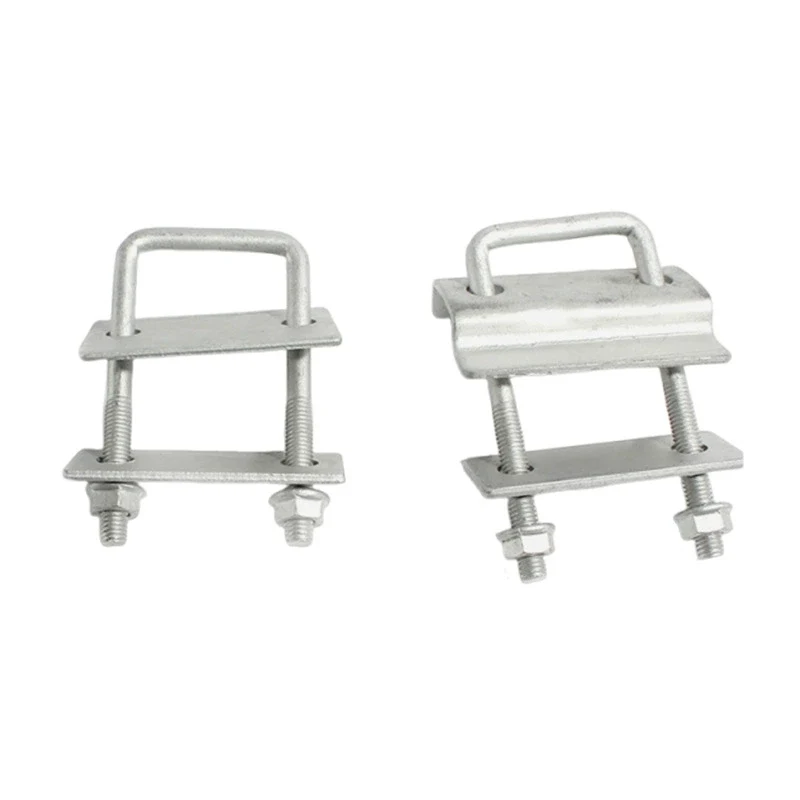

Hot-Dip Galvanized Pressure Plates
Provide a galvanized clamping interface for structural support connections. The hot-dip galvanized pressure plate is identified with a hot-dip galvanized finish and shown in a bridge assembly with two fastening positions. It is used for solar mounting supports and section-to-section clamping. Coating specification, plate dimensions, bolt centers, and fastener specification are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageClamps & Roof Attachments

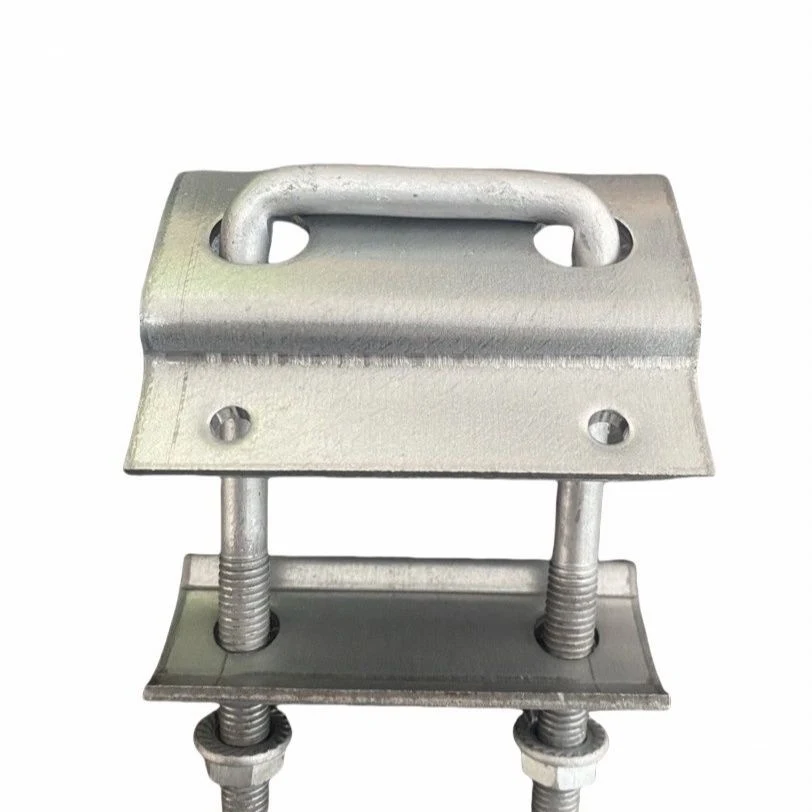

Zinc-Aluminum-Magnesium Pressure Plates
Provide a coated pressure plate for a matching mounting joint. The zinc-aluminum-magnesium pressure plate has an elongated mounting opening and a bolted assembly shown in the supplied product information. It is intended for matching coated-steel PV supports and mounting connection assemblies. Coating family is zinc-aluminum-magnesium; coating mass, plate thickness, slot dimensions, and bolt configuration are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageClamps & Roof Attachments

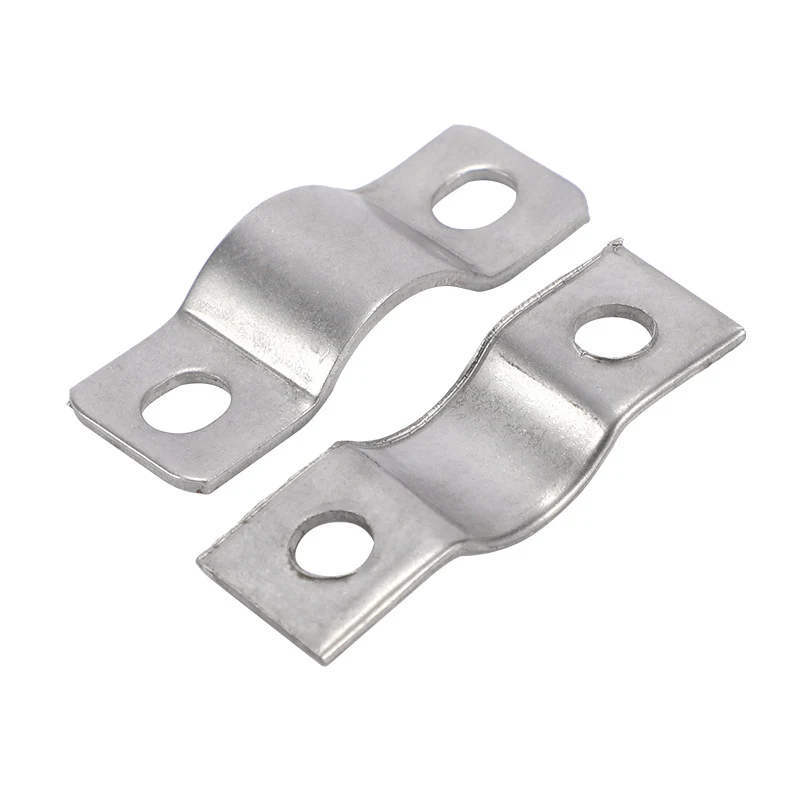

Flat Steel Pipe Clamps
JINSHANG flat steel pipe clamps use a formed flat-steel strap to hold a round section, with a curved central saddle, flat mounting tabs, and two fixing holes for round-section support connections and pipe-to-bracket mounting. Pipe diameter, strap width, strap thickness, and finish are confirmed against the selected product drawing or quotation so the clamp can be matched to the pipe and bracket in each assembly.
Product details ↗
1 imageClamps & Roof Attachments

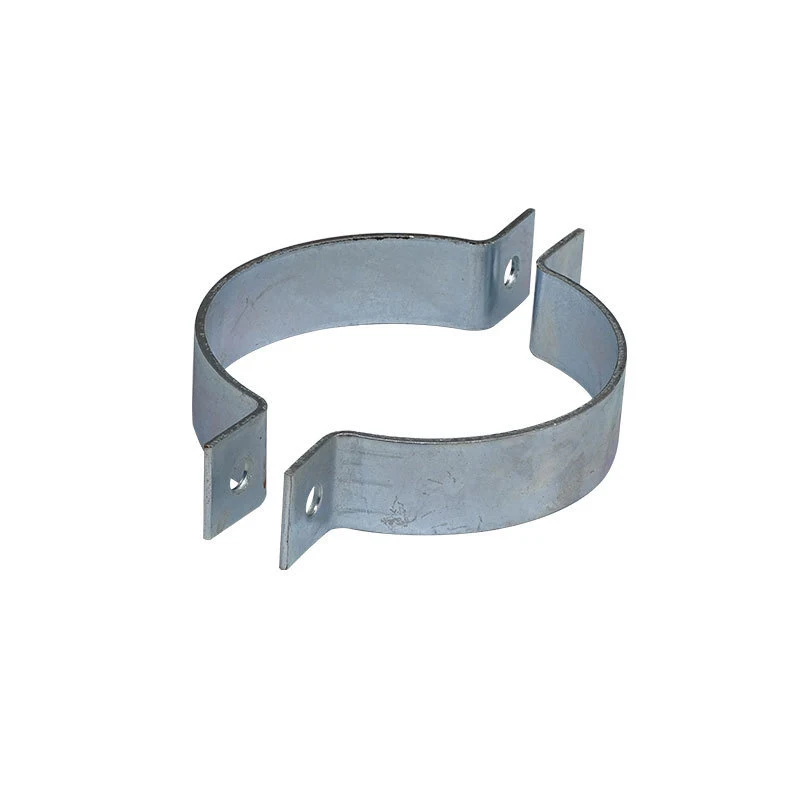

Hot-Dip Galvanized Strap Clamps
JINSHANG hot-dip galvanized strap clamps wrap a round section with a galvanized steel band for round posts and support tubes and PV support attachment assemblies. The clamp uses a circular strap form with two end fixing tabs. The surface finish is hot-dip galvanized, with the coating specification to be confirmed. Tube outside diameter, band dimensions, bolt diameter, and coating requirement are confirmed against the selected product drawing or quotation.
Product details ↗
1 imageClamps & Roof Attachments

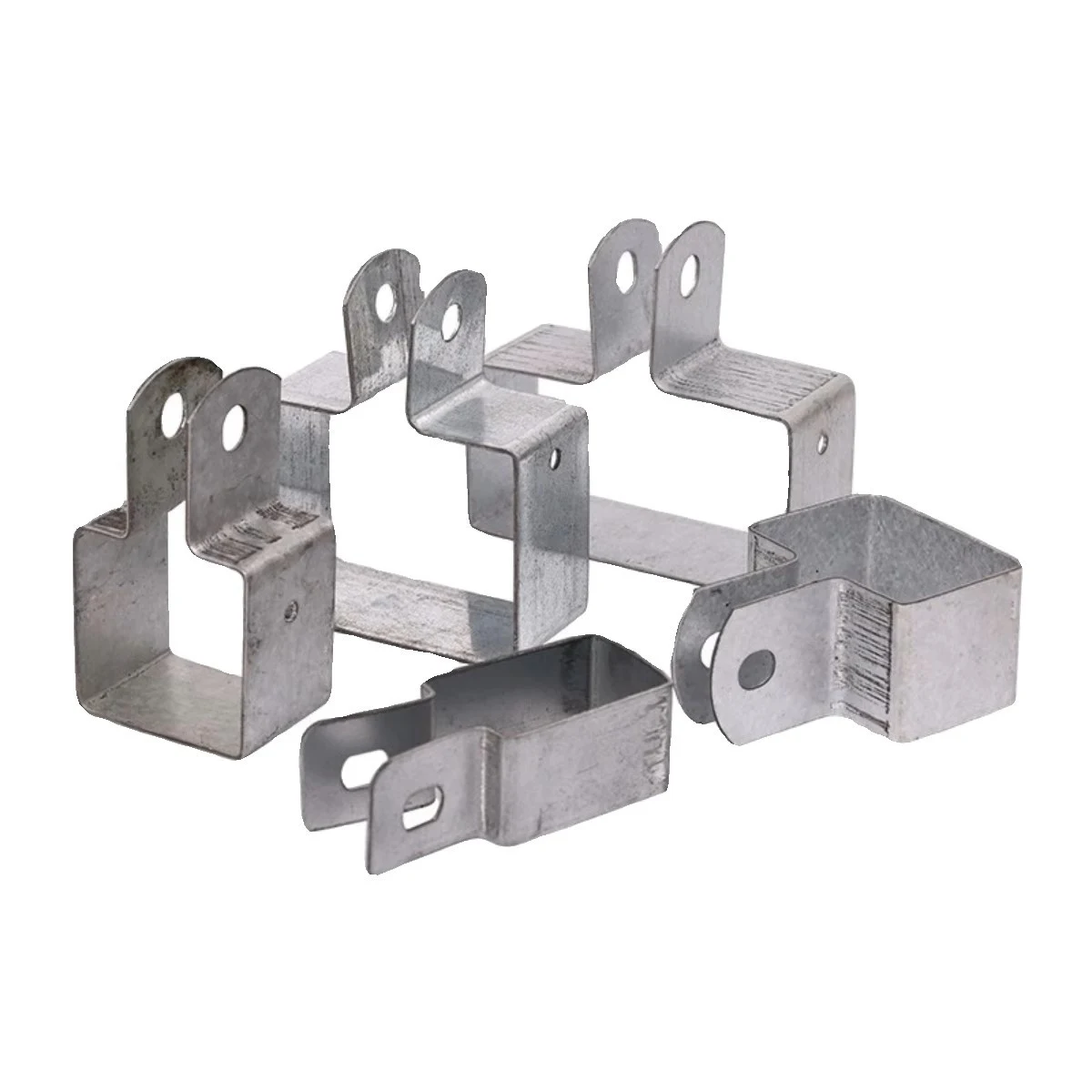

Omega Pipe Clamps
JINSHANG omega pipe clamps secure a matching tube profile with an omega-style bracket, using a raised bridge section and outward fixing tabs for tube-to-support connections and PV mounting subassemblies. The clamps are shown in multiple bracket sizes. Tube profile, bracket height, fixing centers, and material and finish are confirmed against the selected product drawing or quotation.
Product details ↗
1 imageClamps & Roof Attachments
Solar Module End Clamps
JINSHANG solar module end clamps retain the outside edge of framed PV modules at the end of a mounting row. The stepped profile uses a central fixing hole, with several heights shown. Frame height, clamp length, rail compatibility, and fastener details are confirmed in the drawing or quotation.
Product details ↗
1 imageClamps & Roof Attachments

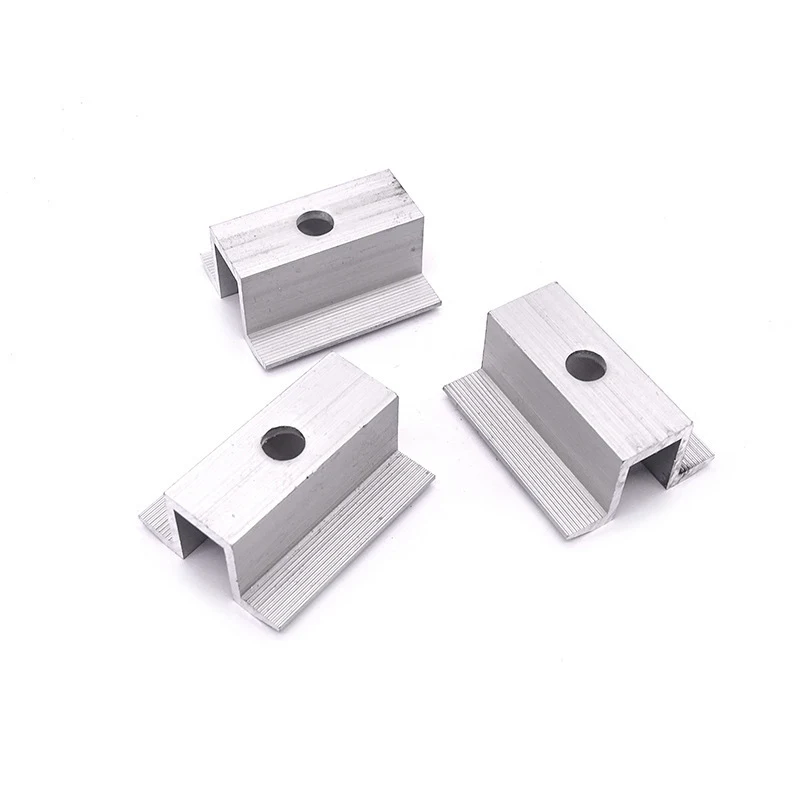

Solar Module Mid Clamps
JINSHANG solar module mid clamps secure adjoining PV module frames at interior fixing points on a mounting rail. Symmetrical clamping shoulders and a central fixing position are shown. Frame height, module gap, clamp length, and rail and bolt compatibility are confirmed in the drawing or quotation.
Product details ↗Rails & Connection Plates
Aluminum rails, support plates, mounting hooks and connection brackets for photovoltaic assemblies.
3 imagesRails & Connection Plates

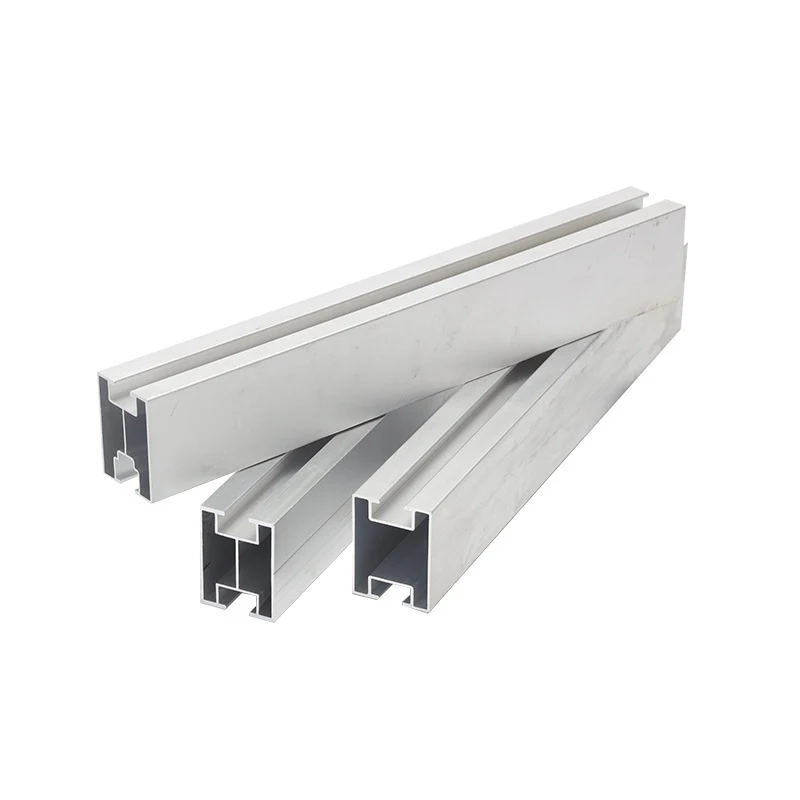

Aluminum Solar Mounting Rails
Aluminum solar mounting rails for PV module support. The supplied views show a continuous longitudinal channel and hollow rail profiles in several cross-section designs. Confirm the selected profile and project requirements against the product drawing or quotation before ordering. JINSHANG Aluminum Solar Mounting Rails are profile-based components for PV mounting assemblies. The images show aluminum rails with a continuous top channel and hollow internal geometry, including several cross-section profiles. Please identify the required profile by its approved drawing and confirm the interface and order details against the quotation before production.
Product details ↗
1 imageRails & Connection Plates

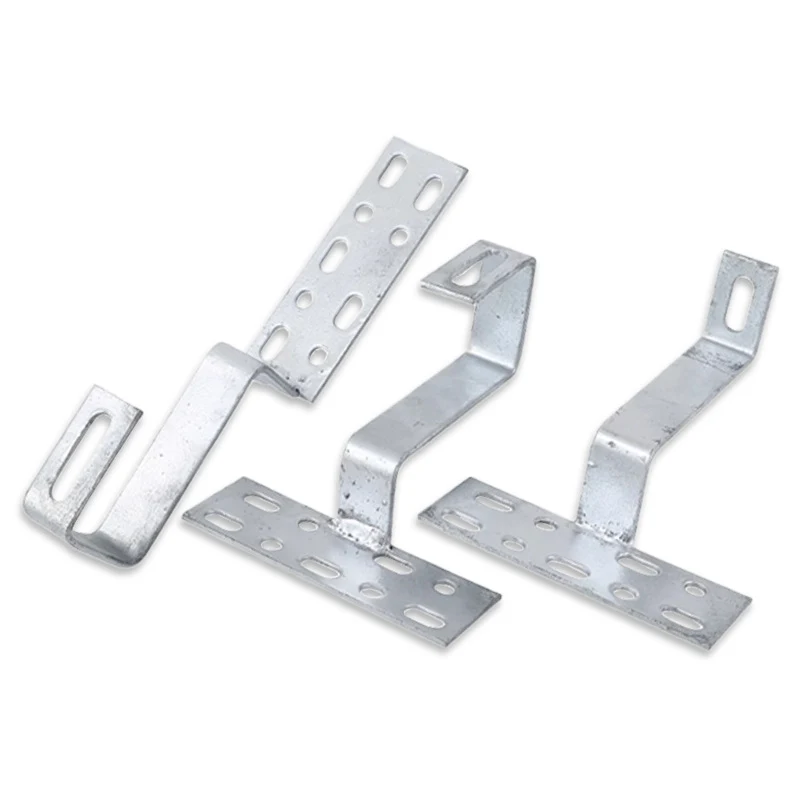

Mounting Hooks
JINSHANG mounting hooks form an offset attachment between a mounting surface and a rail connection, using offset hook geometry and slotted attachment openings for compatible roof mounting interfaces and offset rail attachment points. Different hook forms are shown. Mounting surface, offset height, hole pattern, and material and loading are confirmed against the selected product drawing or quotation.
Product details ↗
1 imageRails & Connection Plates
Straight Rail Connectors
JINSHANG straight rail connectors join aligned mounting sections through a straight connecting piece, using an elongated joining profile and multiple slots for aligned rail joints and PV support section extensions. Alternative section forms are shown. Rail profile, connector length, slot pattern, and fastener details are confirmed against the selected product drawing or quotation.
Product details ↗
1 imageRails & Connection Plates

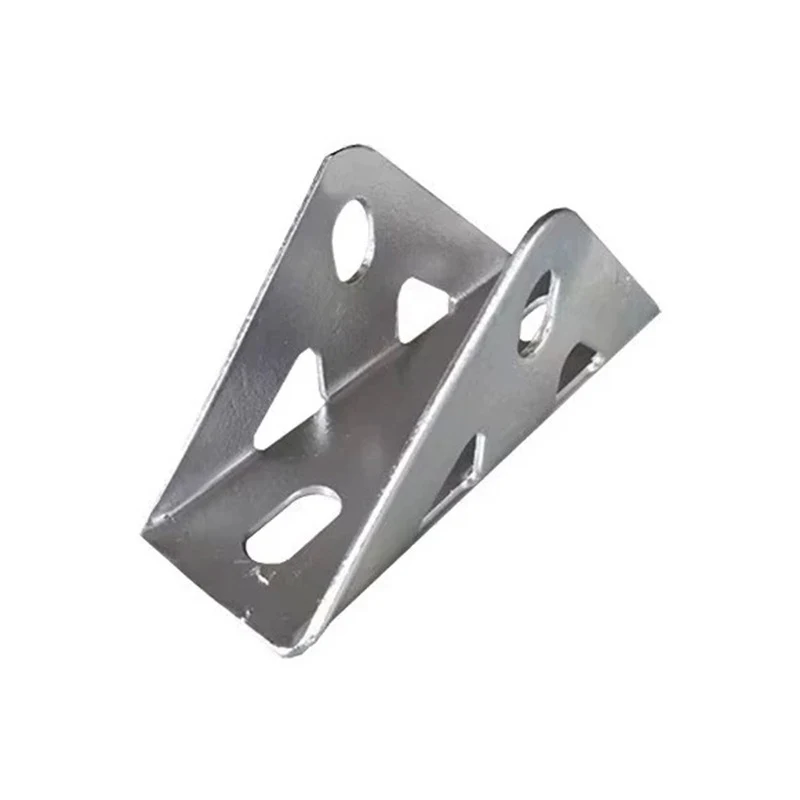

Eight-Hole Triangular Brackets
Connect support members with an angled, multi-hole bracket. The eight-hole triangular bracket uses a folded triangular geometry with multiple fastening locations. It is intended for angled PV support joints and structural bracket connections. Angle, hole centers, thickness, material, and coating are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageRails & Connection Plates

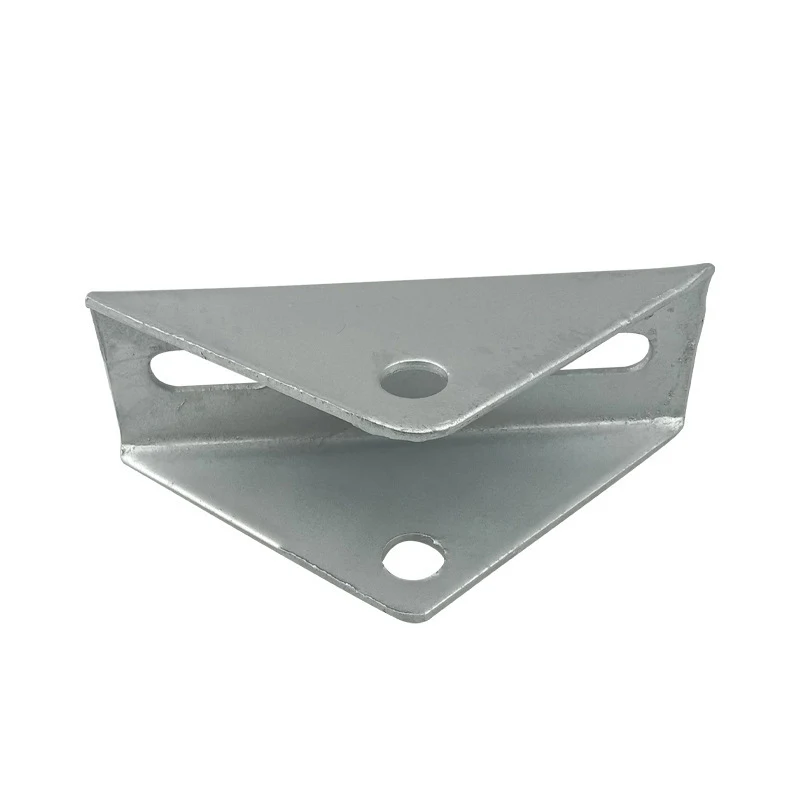

Four-Hole Triangular Brackets
Provide a compact angled connection between mounting members. The four-hole triangular bracket has a triangular bracing form and folded connection faces. It is used for solar support angle joints and bracing connections. Bracket angle, plate thickness, hole diameter, material, and coating are confirmed with the selected product drawing or quotation.
Product details ↗
2 imagesRails & Connection Plates

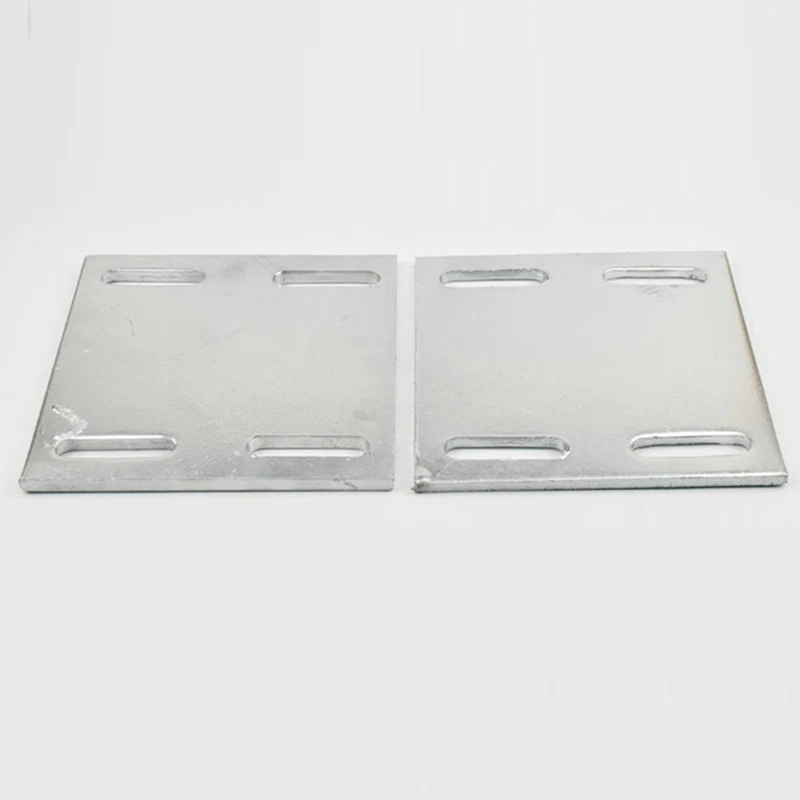

Hot-Dip Galvanized Slotted Plates
Connect structural members using elongated holes for positioning. The hot-dip galvanized slotted plate is identified with a hot-dip galvanized finish and offered in flat and formed examples in the supplied images. It is used for PV support adjustment points and drawing-matched structural connections. Surface finish is hot-dip galvanized; coating specification, flat or formed style, plate dimensions, slot centers, and thickness are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageRails & Connection Plates

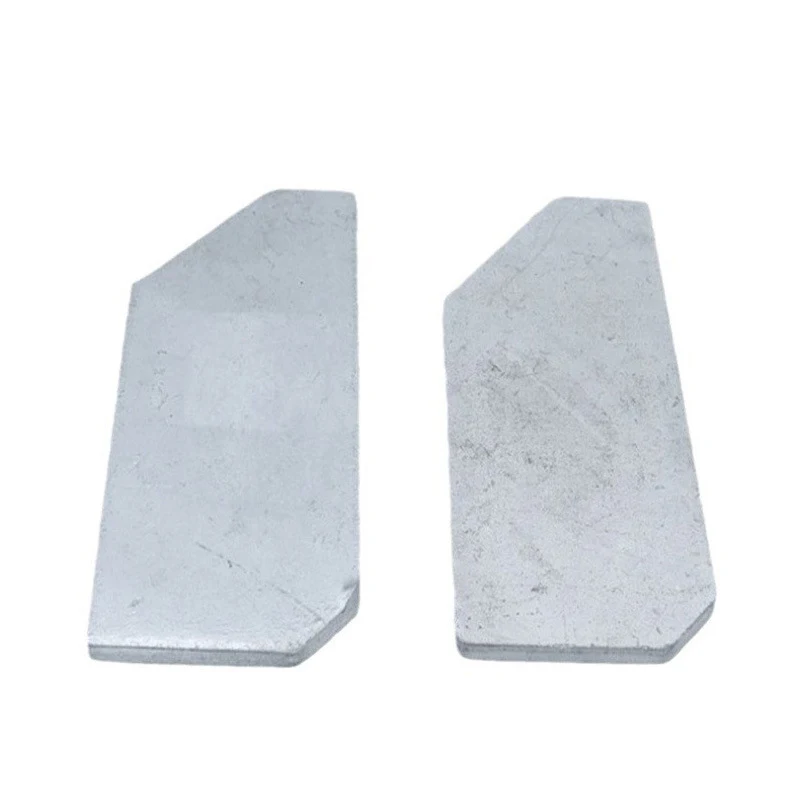

Hot-Dip Galvanized Solid Gusset Plates
Provide an unperforated reinforcement plate for a specified connection. The hot-dip galvanized solid gusset plate is a shaped steel plate with no pre-punched holes visible and a hot-dip galvanized finish identified. It is intended for drawing-defined support reinforcement and fabricated mounting joints. Outline drawing, thickness, connection method, and coating requirement are confirmed with the selected product drawing or quotation.
Product details ↗
5 imagesRails & Connection Plates

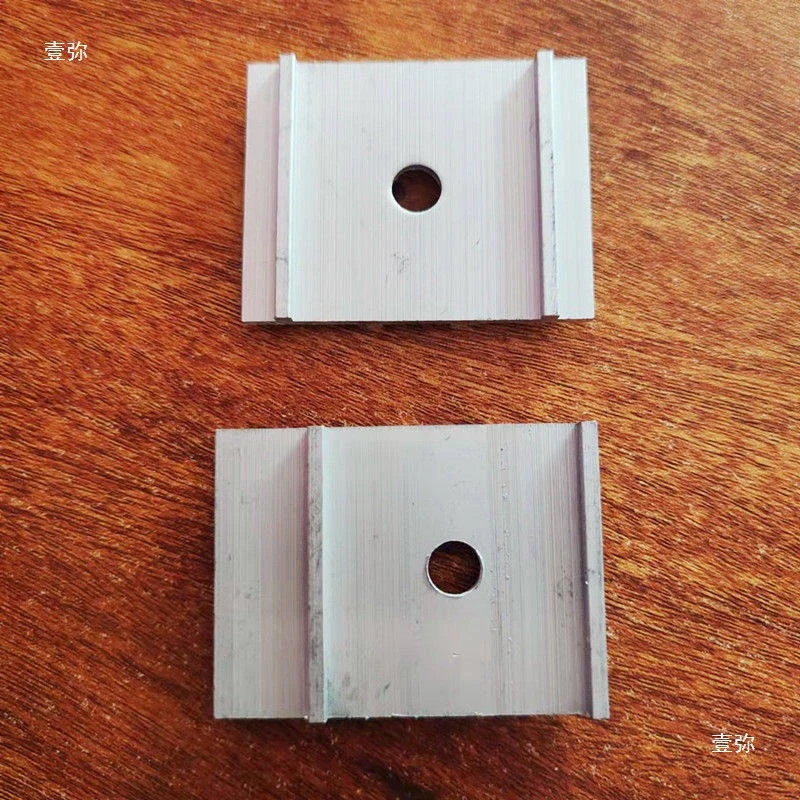

Middle Module Support Plates
Middle module support plates provide a shaped support interface beneath a specified module connection. Share the mating profile and connection drawing so the interface can be checked for the intended assembly.
Product details ↗
6 imagesRails & Connection Plates

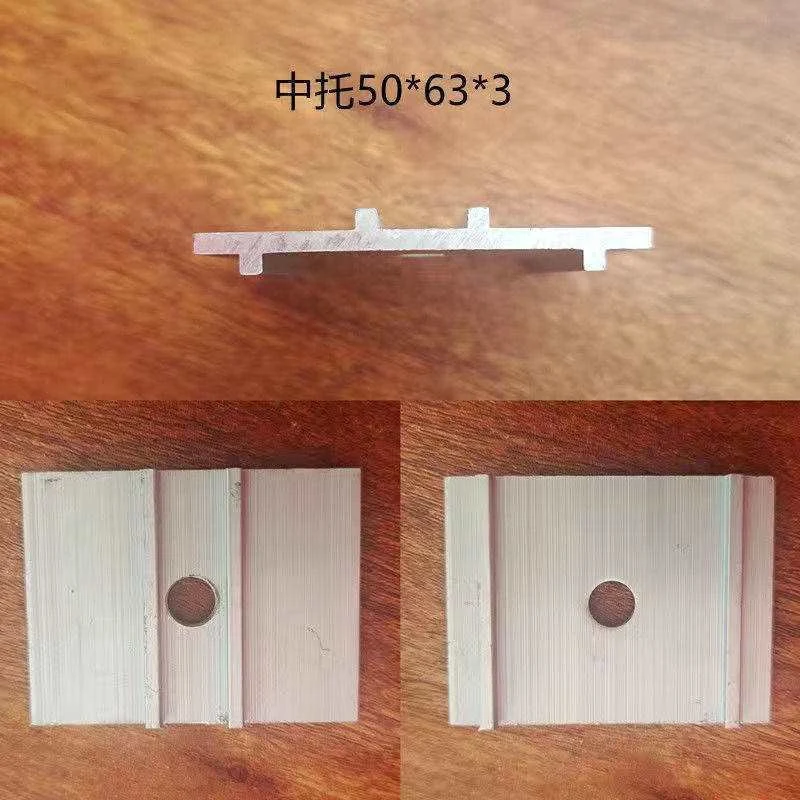

Module Support Plate Profiles
Solar module support plate profiles provide a range of shaped plates for a drawing-matched module interface. Share the mating profile and fixing details so the form can be checked against the assembly drawing.
Product details ↗Bolts, Nuts & Washers
Stainless steel and hot-dip galvanized fasteners, including bolts, threaded rods, nuts, washers and anchors.
1 imageBolts, Nuts & Washers

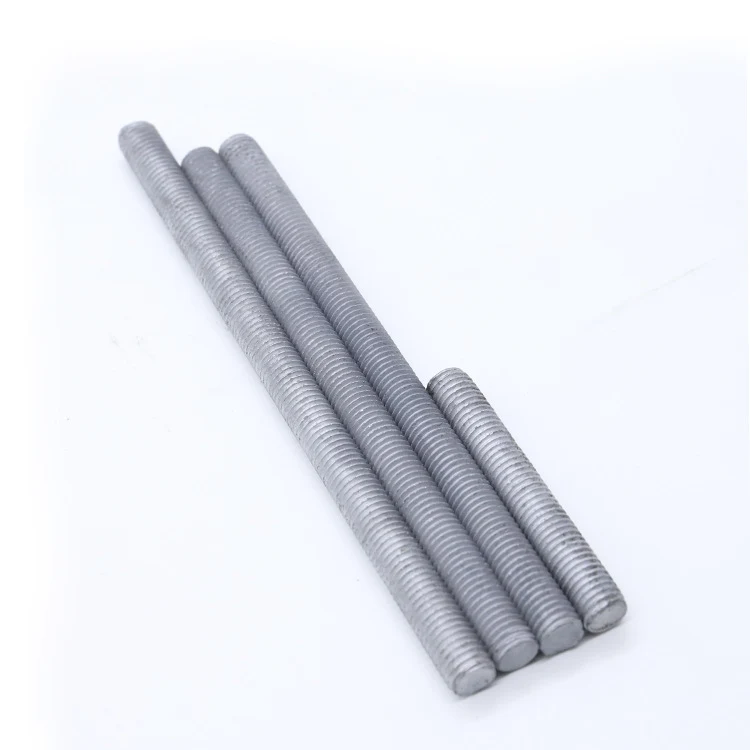

Hot-Dip Galvanized Threaded Rods
JINSHANG hot-dip galvanized threaded rods provide a headless threaded connection for through-connections and solar support fastening assemblies. The threaded rod format is shown in multiple lengths, with a hot-dip galvanized designation. Thread diameter and pitch, rod length, strength grade, and coating thickness are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageBolts, Nuts & Washers

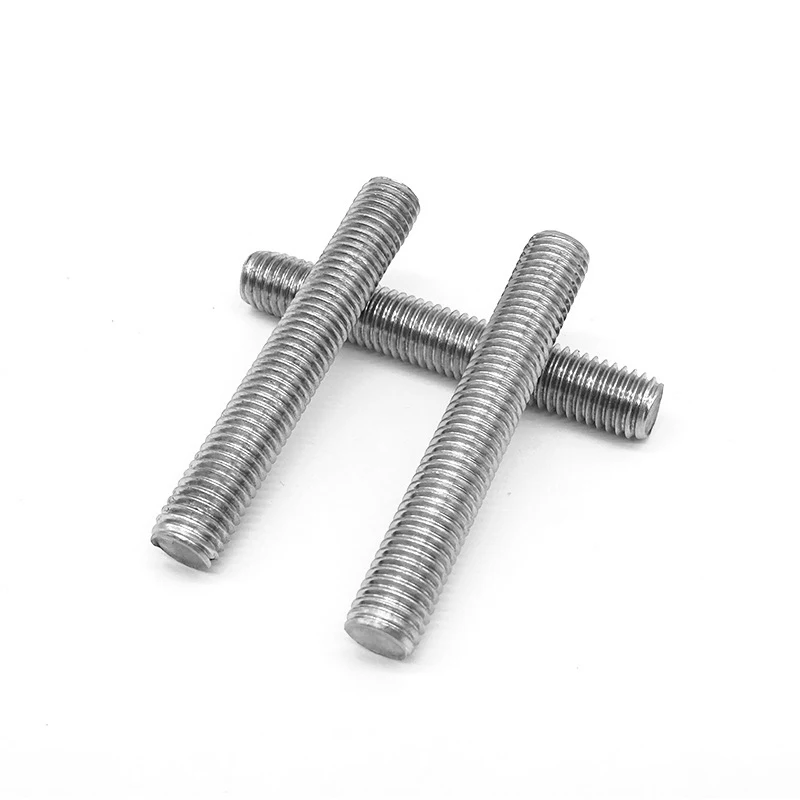

Stainless Steel Threaded Rods
JINSHANG stainless steel threaded rods provide a stainless steel headless fastener for through-connections and threaded mounting assemblies. They have a continuous external thread in a straight rod shape. Bolted support connections and threaded mounting assemblies use them. Stainless grade, thread size, length, and mechanical requirements are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageBolts, Nuts & Washers

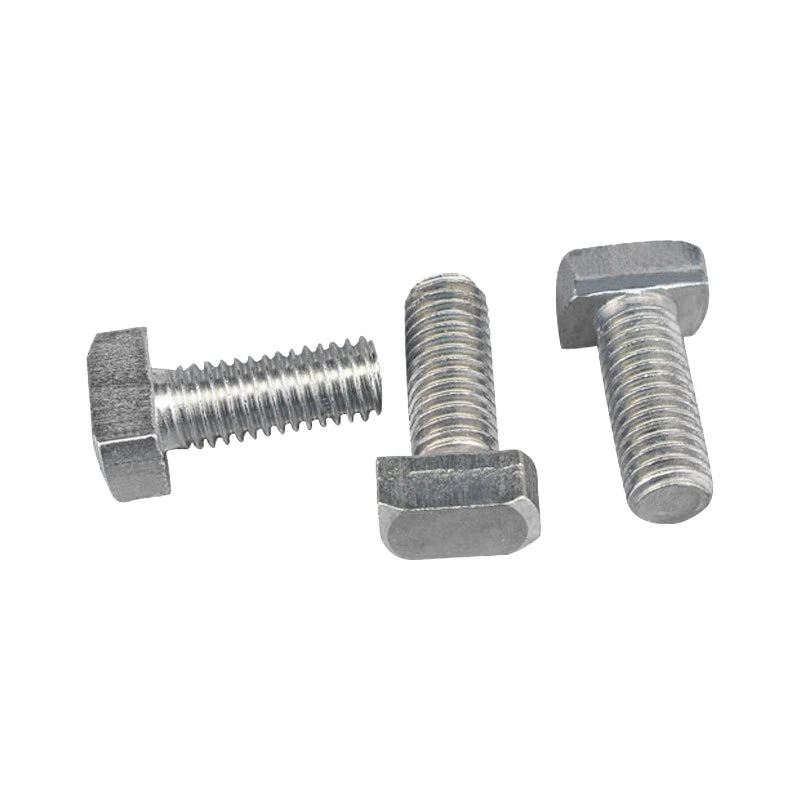

T-Head Bolts
JINSHANG T-head bolts engage a compatible mounting slot with a transverse bolt head. The threaded shank and compact slot-engagement geometry suit matching rail channels and PV mounting clamp connections. Head dimensions, thread size, bolt length, material and grade follow the selected product drawing or quotation.
Product details ↗
1 imageBolts, Nuts & Washers

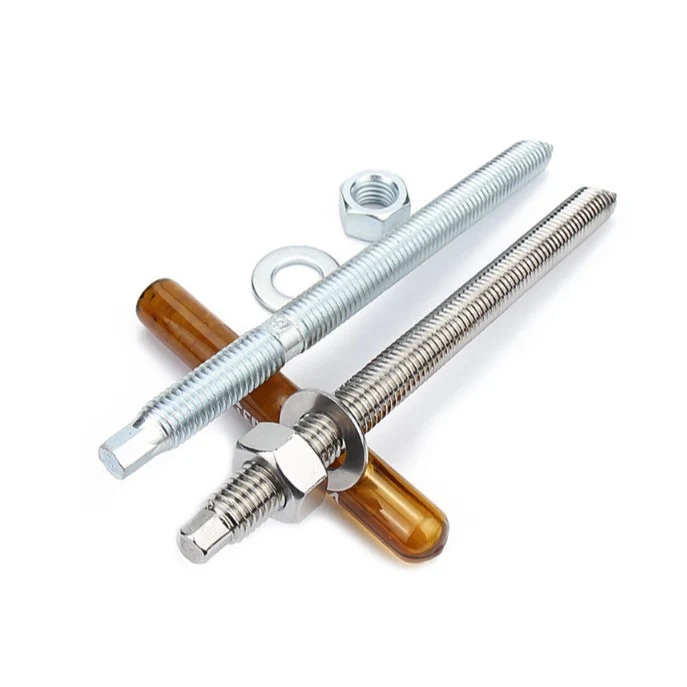

Stainless Steel Chemical Anchor Rods
JINSHANG stainless steel chemical anchor rods provide an anchor rod for a separately specified bonded anchoring system. Rod and accessory examples are shown. Rod size, resin system, embedment depth, substrate and design load follow the selected drawing or quotation.
Product details ↗
2 imagesBolts, Nuts & Washers

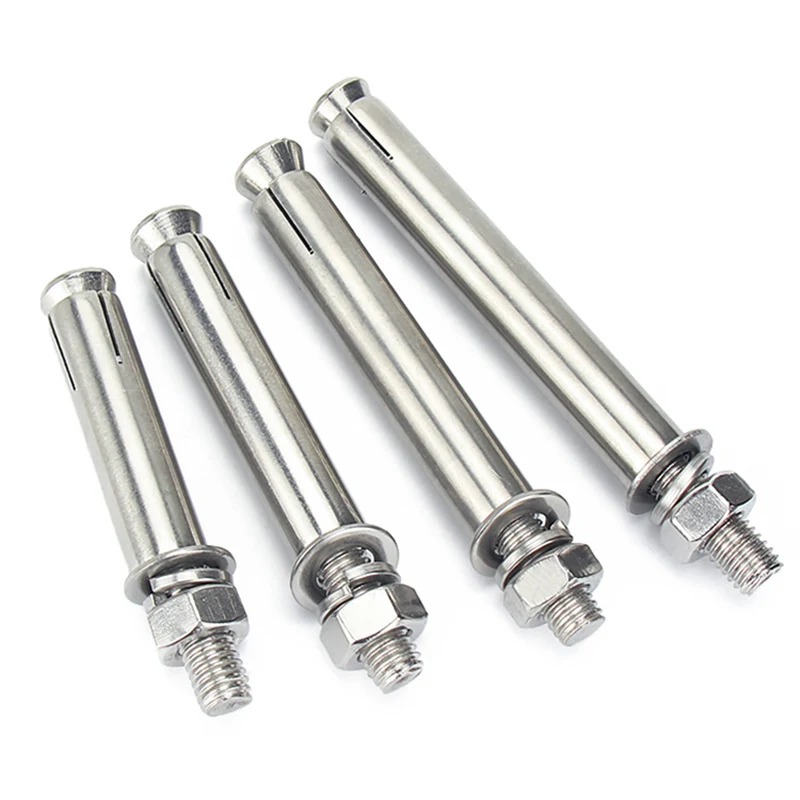

Stainless Steel Expansion Anchors
JINSHANG stainless steel expansion anchors provide a mechanical expansion fixing for a specified solid substrate. They are used for designed concrete fixings and mounting base attachment. Anchor size, substrate, embedment, stainless grade and load documentation follow the selected product drawing or quotation.
Product details ↗
1 imageBolts, Nuts & Washers

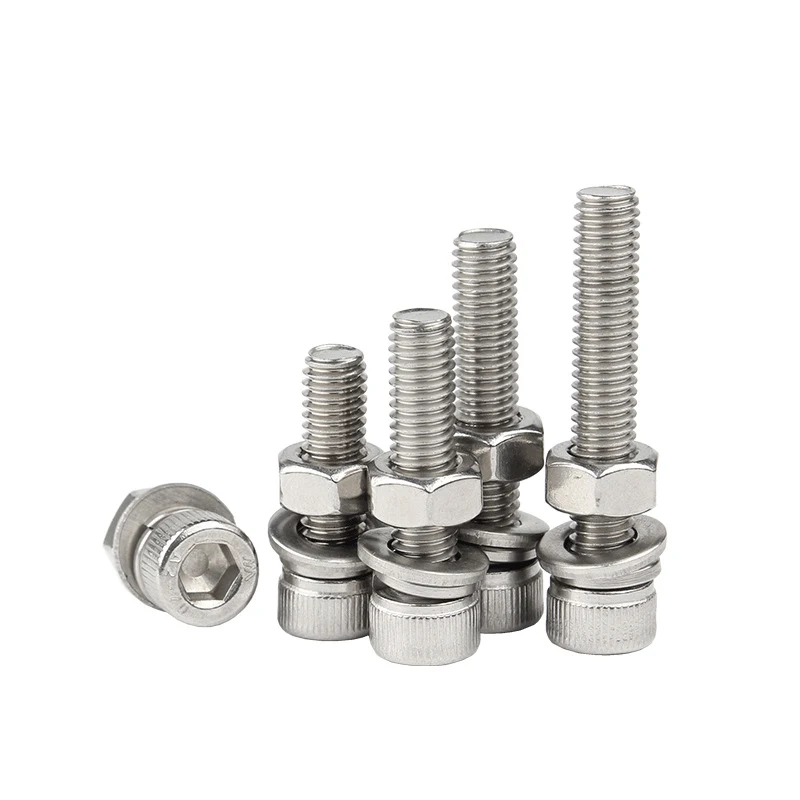

Stainless Steel Socket Bolt Assemblies
JINSHANG stainless steel socket bolt assemblies pair a socket-drive bolt with fastening accessories for an assembly joint. Features include an internal hexagon drive, pictured nuts and washers, and a stainless steel designation. They are intended for PV support joints and socket-access bolted assemblies. Exact stainless grade, thread size, bolt length, and included accessories are confirmed with the selected product drawing or quotation.
Product details ↗
2 imagesBolts, Nuts & Washers

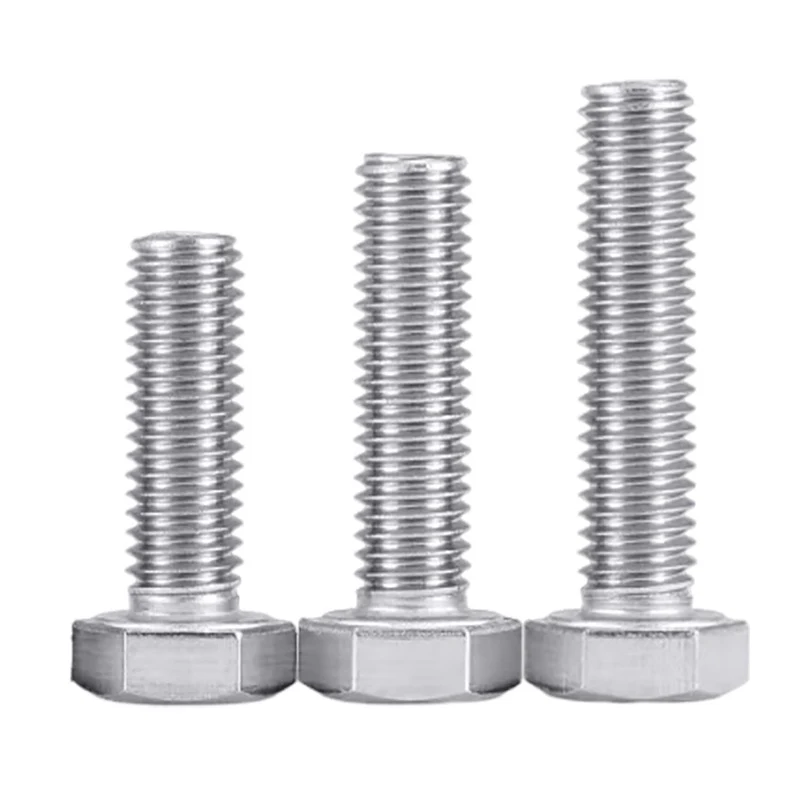

Stainless Steel Hex Head Bolts
JINSHANG stainless steel hex head bolts provide a wrench-driven stainless steel threaded fixing for structural component connections and solar mounting hardware assembly. Each bolt has an external hexagonal head and threaded shank, with bolt and assembly views supplied. Exact stainless grade, thread and pitch, length, and nut and washer requirements are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageBolts, Nuts & Washers

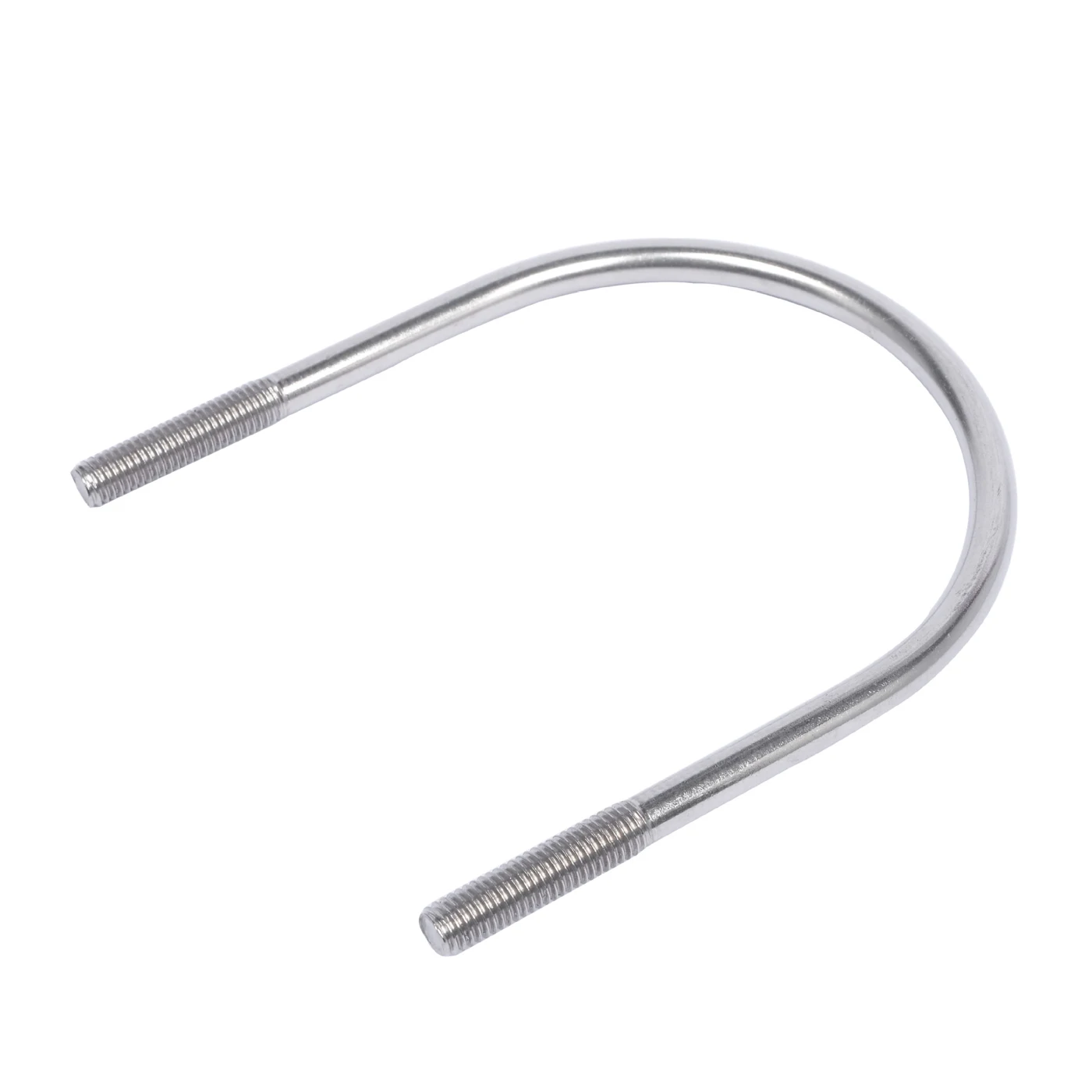

Stainless Steel U-Bolts
JINSHANG stainless steel U-bolts wrap a round support with a stainless steel U-shaped fastener. The curved U shape has two threaded legs and a stainless steel designation. They are suited to tube and round-post connections and PV support clamp assemblies. Inside width, leg length, thread size, and stainless grade are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageBolts, Nuts & Washers

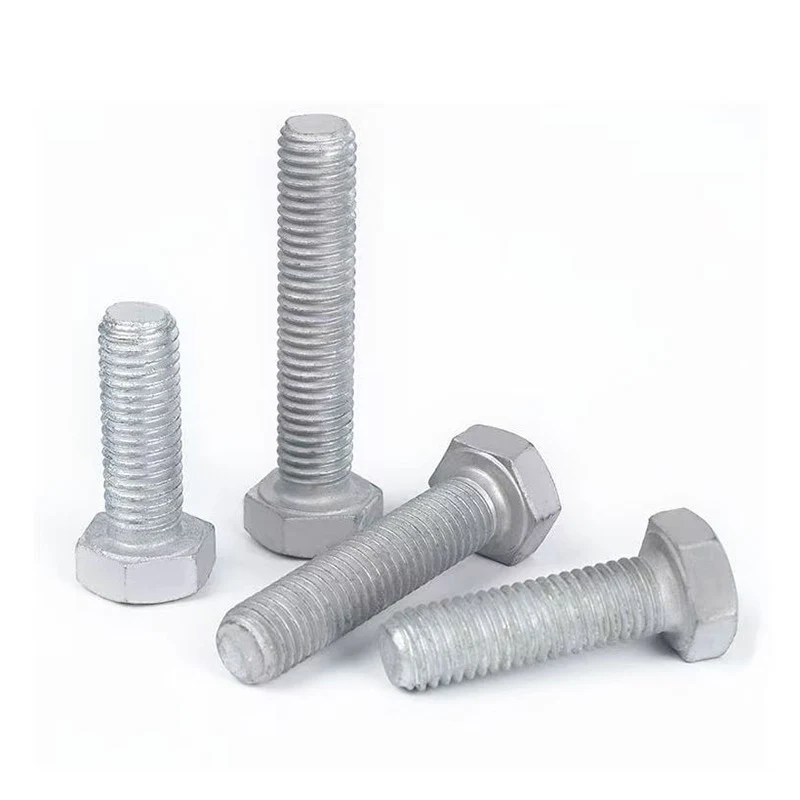

Hot-Dip Galvanized High-Strength Bolts
JINSHANG hot-dip galvanized high-strength bolts provide a galvanized bolt for joints with a specified strength requirement. Features include an external hexagon head and a hot-dip galvanized finish, with the high-strength designation in the source. They are intended for engineered mounting connections and structural bolted joints. Required strength class, thread size, length, coating specification, and matching nut are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageBolts, Nuts & Washers

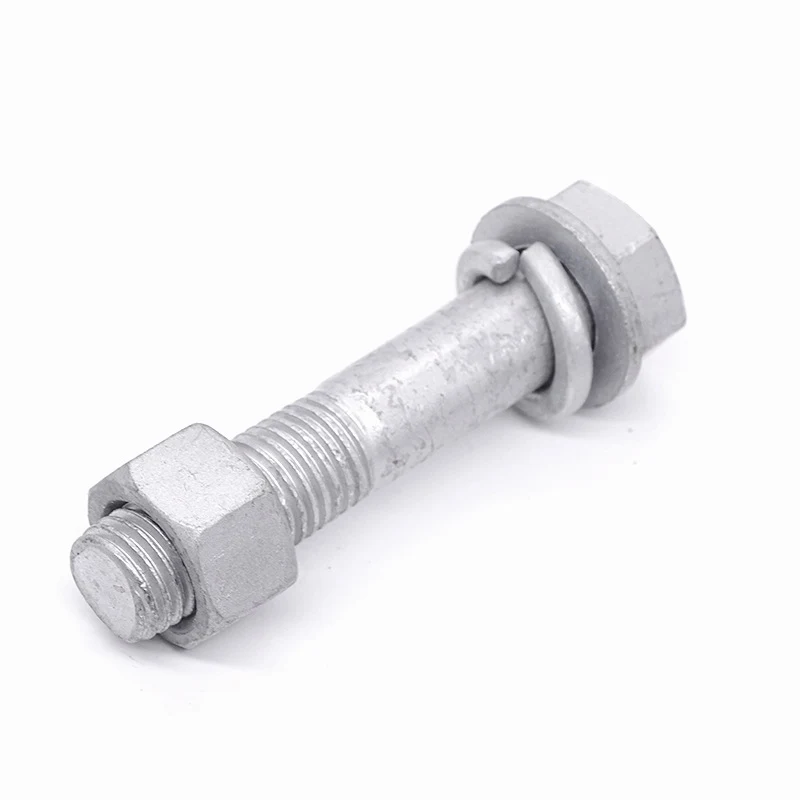

Hot-Dip Galvanized Hex Head Bolts
JINSHANG hot-dip galvanized hex head bolts connect components with a galvanized wrench-driven bolt. Each bolt has a hexagonal head, with a nut and washer assembly pictured and a hot-dip galvanized designation. They are intended for outdoor mounting hardware joints and bolted support connections. Thread size, length, bolt grade, and assembly accessories are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageBolts, Nuts & Washers

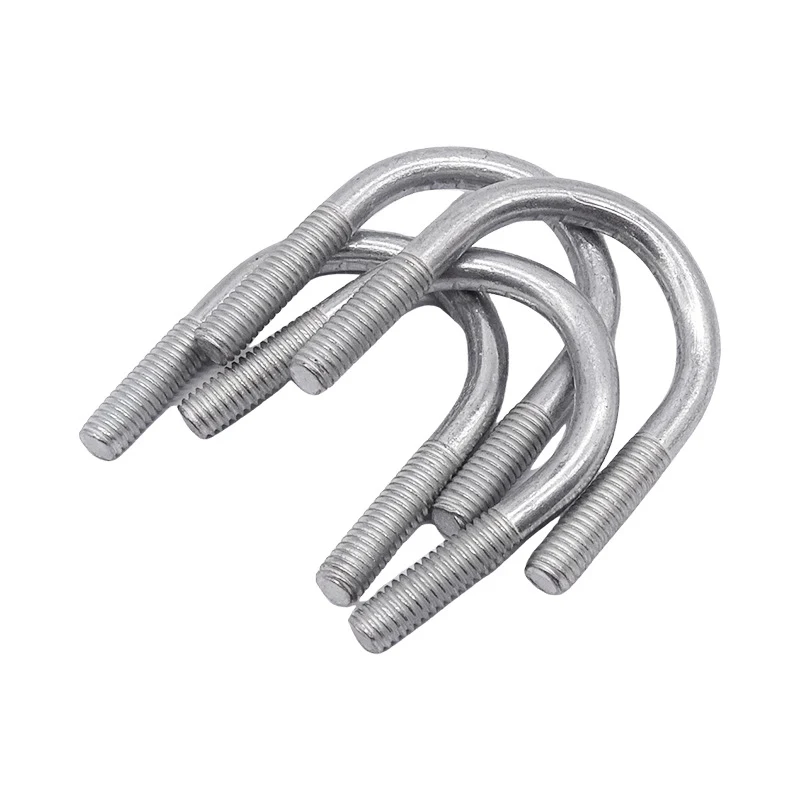

Hot-Dip Galvanized U-Bolts
JINSHANG hot-dip galvanized U-bolts clamp round members with a galvanized U-shaped fastener. They have two threaded legs and a bent U-shaped body with a hot-dip galvanized designation. They are suited to round-section mounting joints and pipe and post clamp assemblies. Inside width, leg length, thread diameter, and coating requirement are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageBolts, Nuts & Washers

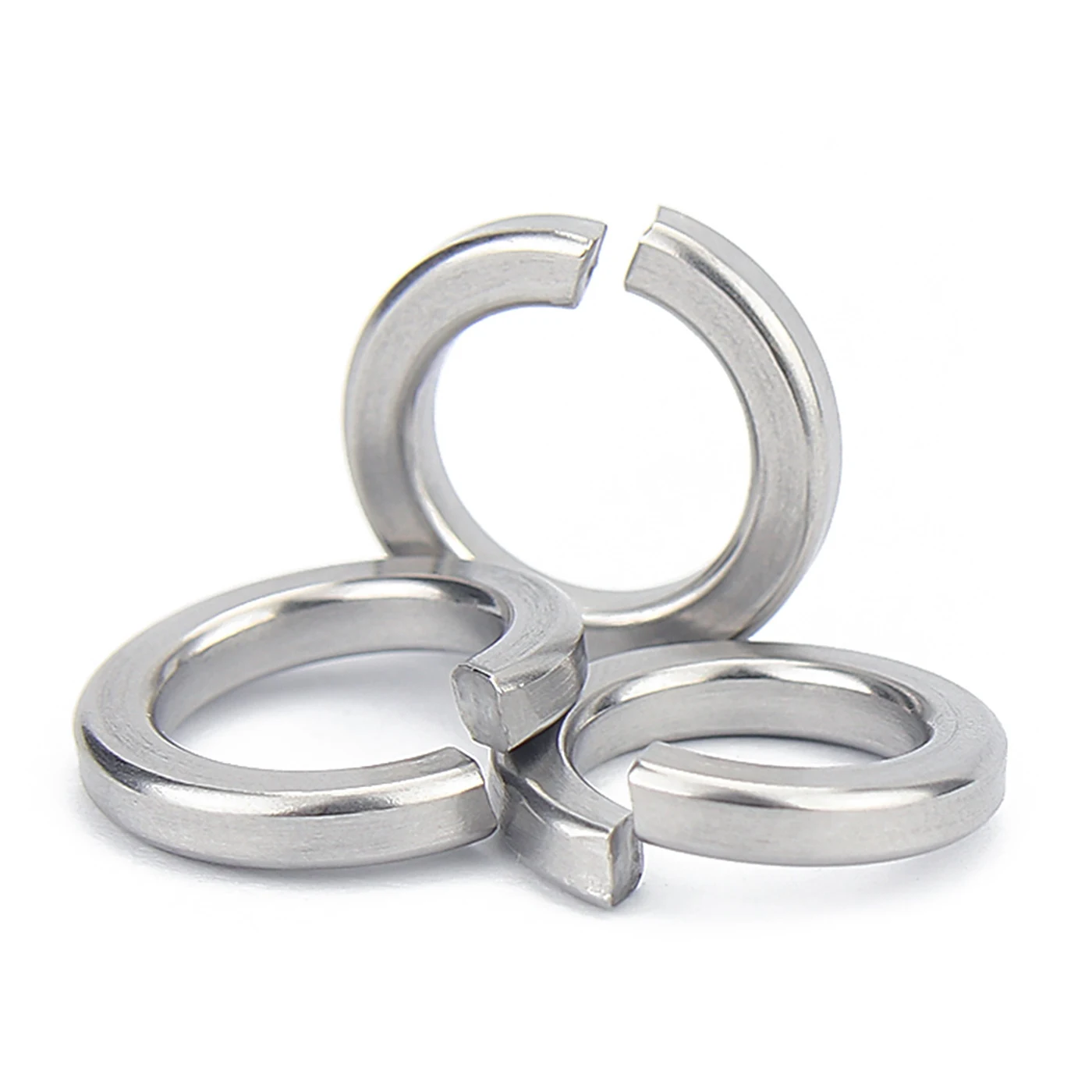

Stainless Steel Spring Washers
JINSHANG stainless steel spring washers provide a split washer for a specified threaded fastening assembly. They feature split-ring geometry, a stainless steel designation, and several sizes pictured. They are intended for bolted mounting assemblies and specified washer stacks. Inside diameter, outside diameter, section thickness, and stainless grade are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageBolts, Nuts & Washers

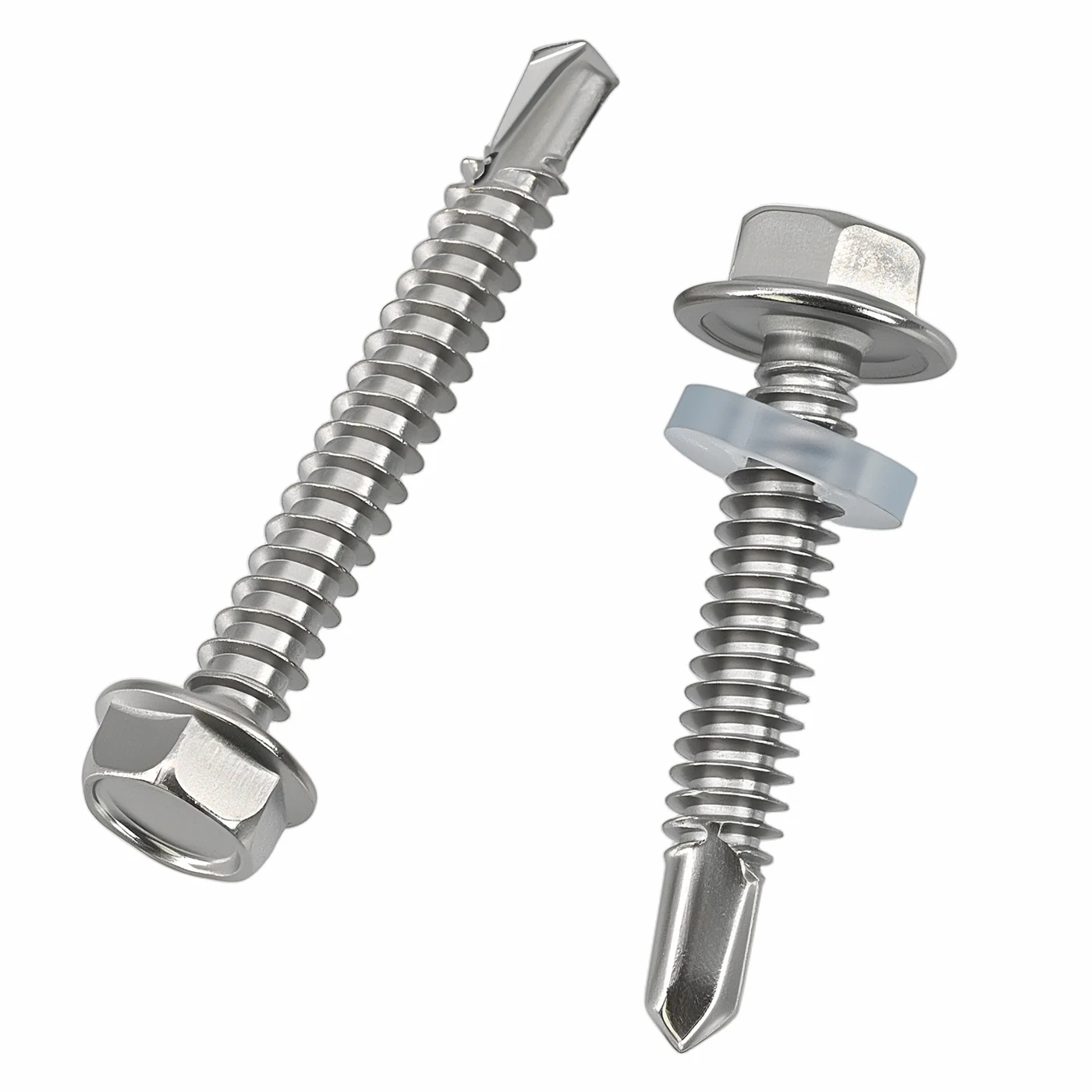

Stainless Steel Self-Drilling Screws
JINSHANG stainless steel self-drilling screws provide a drill-point screw for a compatible sheet or section connection. They have a drill-point tip, an external hexagon head, and washer examples pictured. They are intended for specified sheet-metal fixings and light-section mounting connections. Screw diameter, length, drilling capacity, washer, and stainless grade are confirmed with the selected product drawing or quotation.
Product details ↗
2 imagesBolts, Nuts & Washers

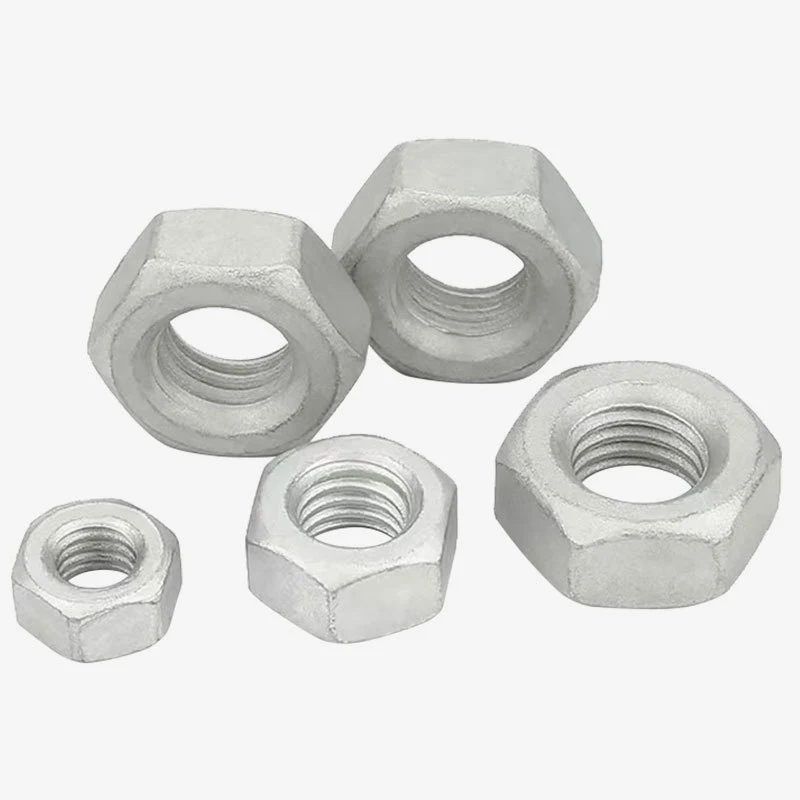

Hot-Dip Galvanized High-Strength Nuts
JINSHANG hot-dip galvanized high-strength nuts use a hexagonal nut profile and a hot-dip galvanized finish. They are intended for matched structural bolt sets and engineered PV support connections where a specified nut class is required. Thread size, nut strength class, matching bolt and coating requirements are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageBolts, Nuts & Washers
Stainless Steel Socket Head Bolts
JINSHANG stainless steel socket head bolts use an internal hexagonal drive and a stainless steel designation. They provide an internal-hex-drive fastener for compact bolted connections such as socket-access mounting joints and PV support hardware assemblies. Material family is stainless steel, with exact grade, thread size, length, and head and accessory requirements confirmed with the selected product drawing or quotation.
Product details ↗
1 imageBolts, Nuts & Washers

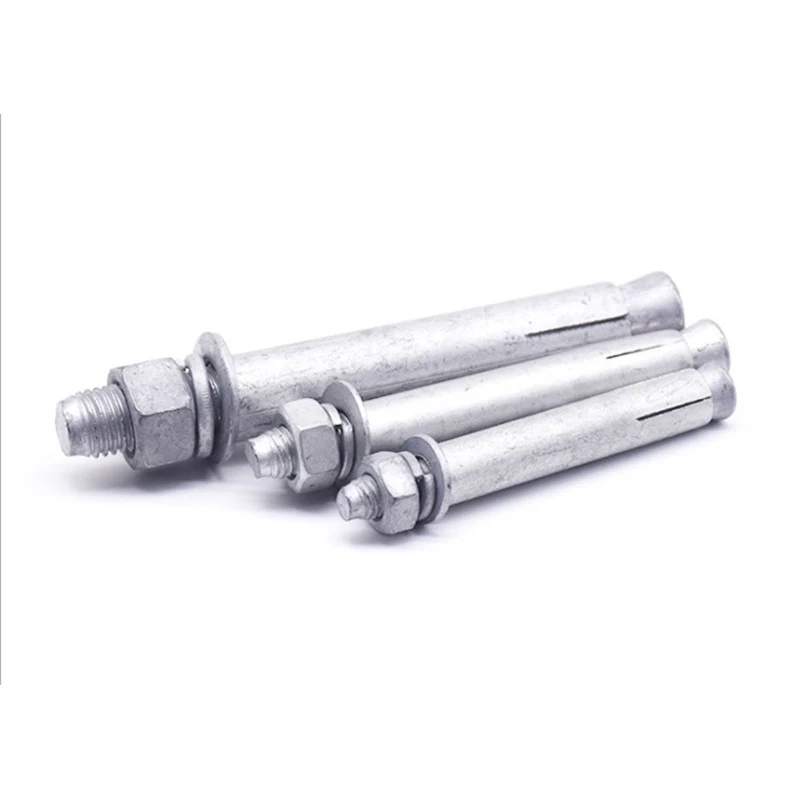

Hot-Dip Galvanized Expansion Anchors
JINSHANG hot-dip galvanized expansion anchors use an expansion-anchor configuration, a threaded fixing end and a hot-dip galvanized designation. They are intended for engineered concrete fixings and support base anchorage where a galvanized mechanical anchor is specified. Anchor diameter, embedment, substrate and load documentation are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageBolts, Nuts & Washers

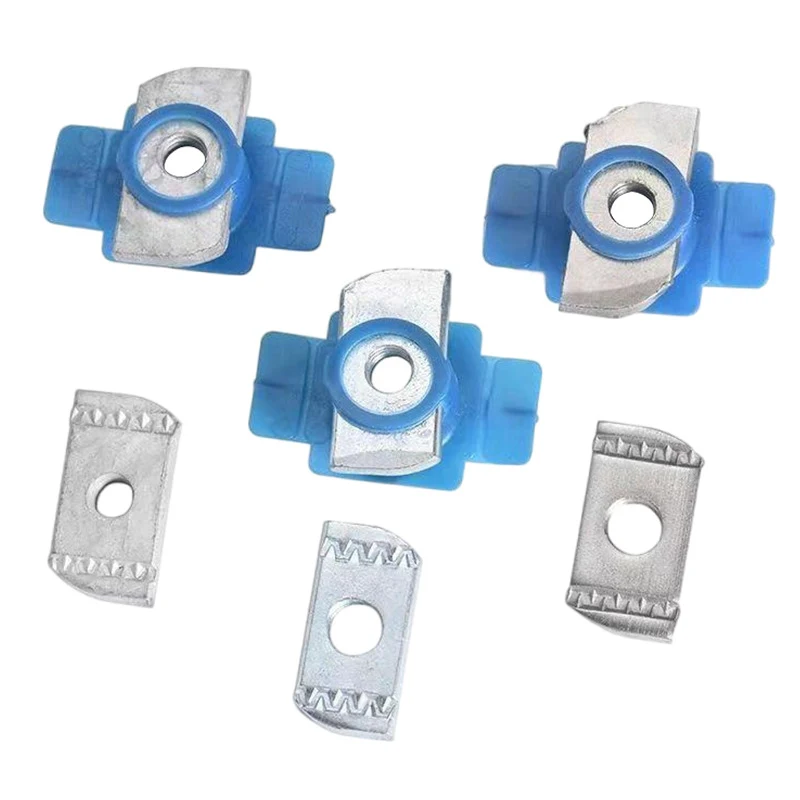

Plastic Wing Channel Nuts
JINSHANG plastic wing channel nuts use plastic positioning wings and a threaded metal insert to position a threaded nut in a compatible channel. They are intended for compatible mounting channels and rail and clamp fastening. Channel profile, thread size, nut material and wing dimensions are confirmed with the selected product drawing or quotation. Multiple forms are pictured.
Product details ↗
1 imageBolts, Nuts & Washers

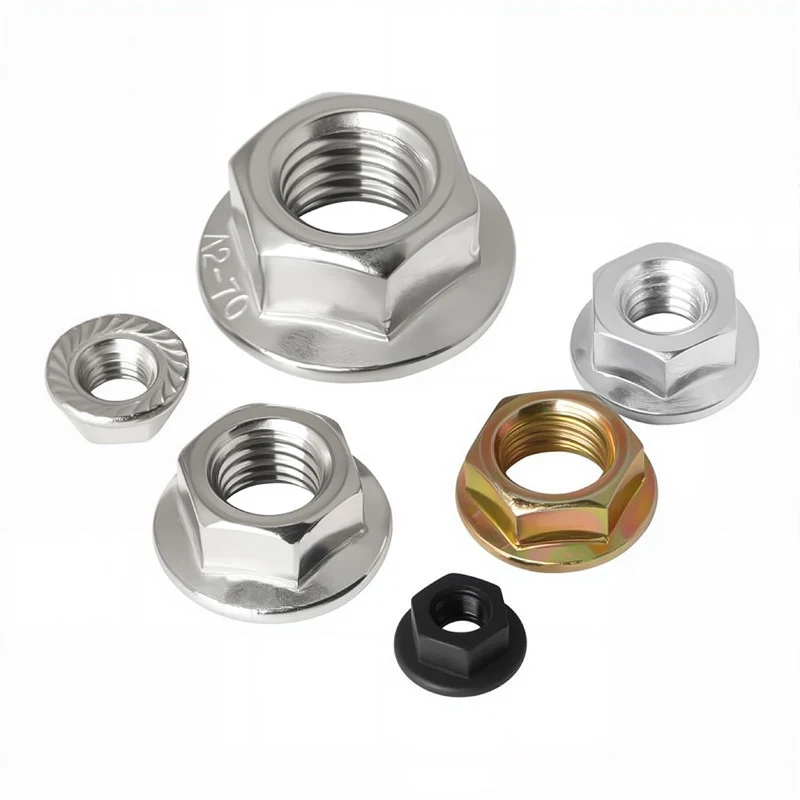

Stainless Steel Flange Nuts
JINSHANG stainless steel flange nuts combine a hexagonal wrenching profile with an integral flange. They are intended for compatible bolted mounting joints and flange-bearing fastener assemblies. The material family is stainless steel, with exact grade, thread size, flange diameter and bearing-face requirements confirmed with the selected product drawing or quotation. Multiple sample forms are shown.
Product details ↗
1 imageBolts, Nuts & Washers

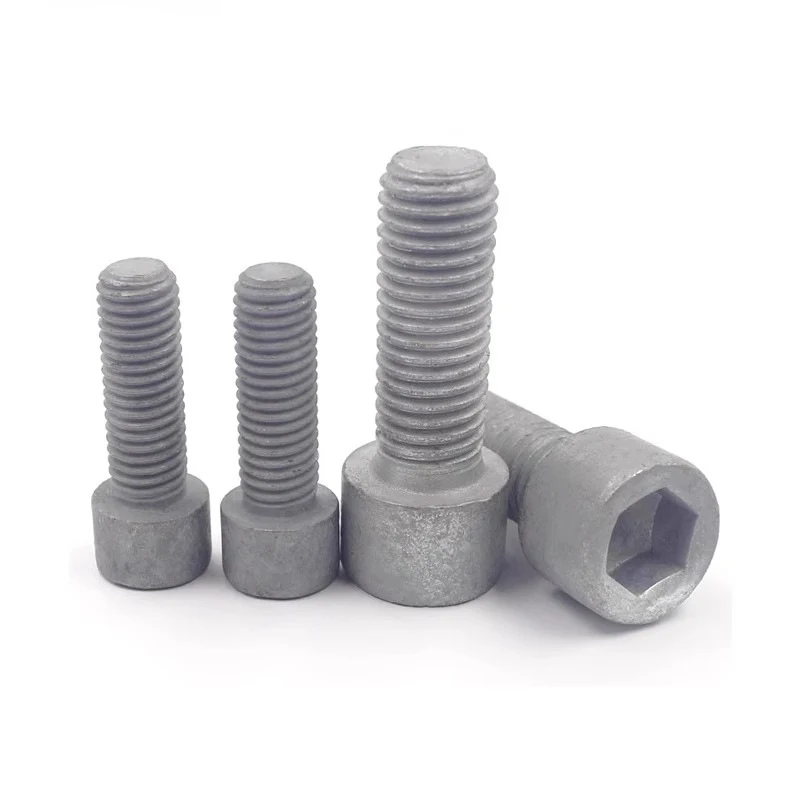

Hot-Dip Galvanized Socket Head Bolts
JINSHANG hot-dip galvanized socket head bolts use a socket head format, a threaded shank and a hot-dip galvanized designation. They provide a galvanized internal-hex-drive bolt for socket-access support joints and industrial mounting assemblies. Thread size, length, strength class and coating requirements are confirmed with the selected product drawing or quotation.
Product details ↗
4 imagesBolts, Nuts & Washers

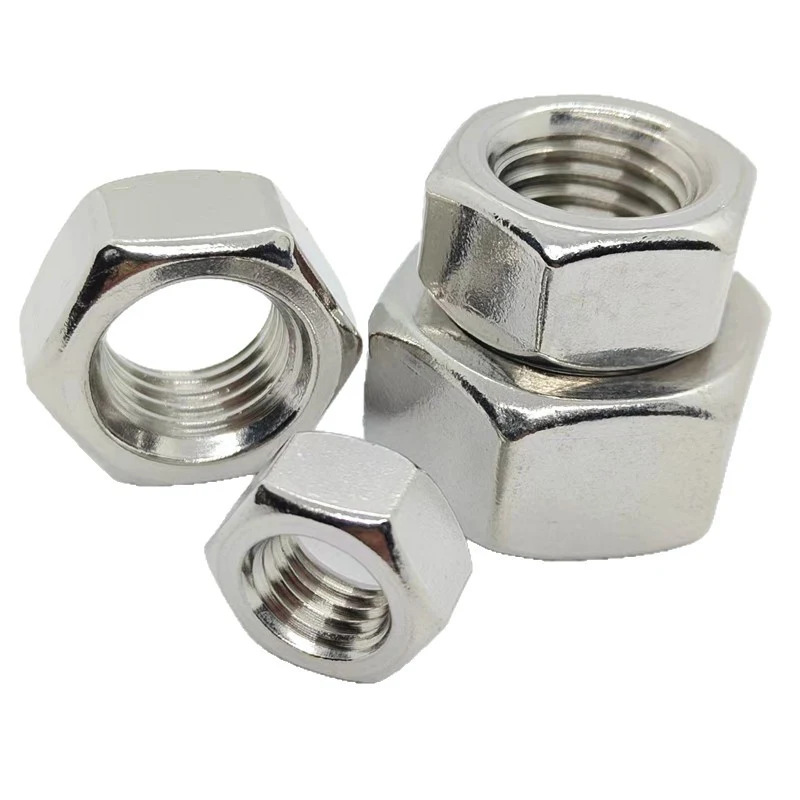

Stainless Steel Hex Nuts
JINSHANG stainless steel hex nuts use a six-flat wrenching profile and an internal thread to provide a stainless steel internal thread for a compatible bolt or rod. They are intended for bolted support joints and threaded rod assemblies. The material family is stainless steel, with exact grade, thread diameter and pitch, nut dimensions and mechanical requirements confirmed with the selected product drawing or quotation. Four supplied product views are available.
Product details ↗
4 imagesBolts, Nuts & Washers

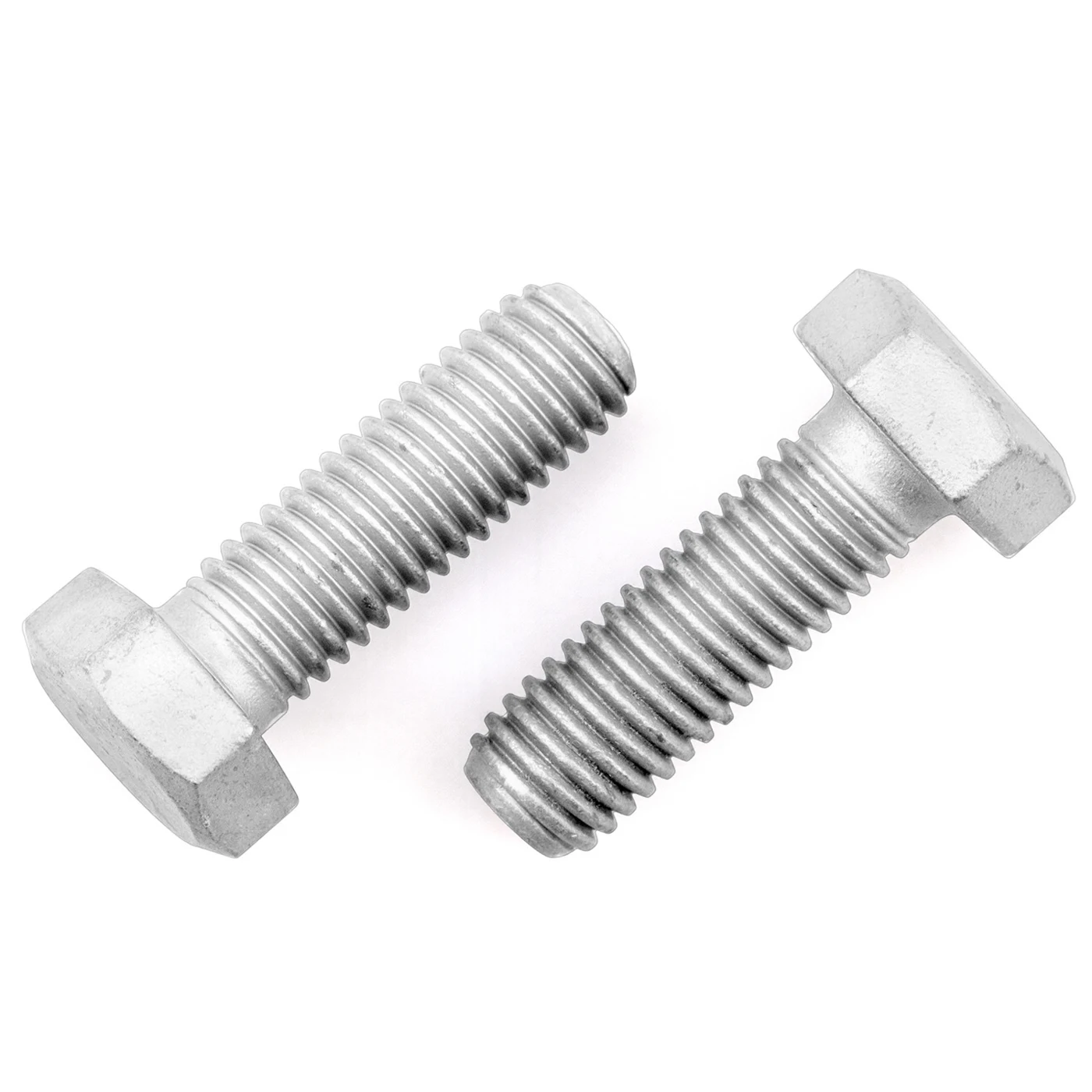

Hot-Dip Galvanized Grade 8.8 Bolts
JINSHANG hot-dip galvanized grade 8.8 bolts use an external hexagonal head and a hot-dip galvanized finish. The strength class is 8.8 as identified in the source product folder. They are intended for engineered PV mounting joints and specified grade 8.8 bolt sets. Thread diameter, bolt length, applicable standard, coating and matching nut are confirmed with the selected product drawing or quotation. Four supplied product views are available.
Product details ↗
4 imagesBolts, Nuts & Washers

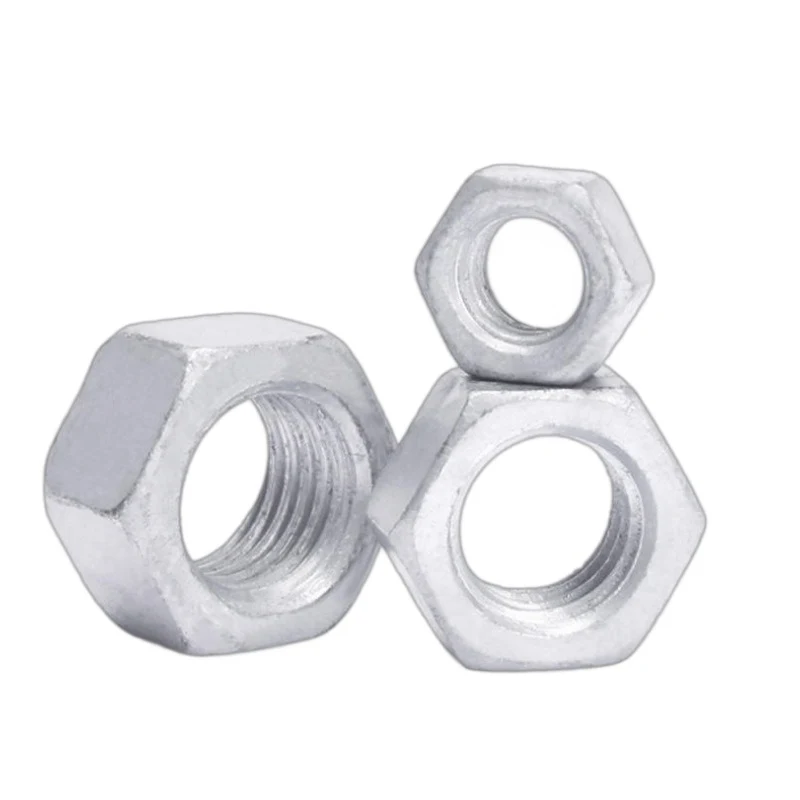

Hot-Dip Galvanized Hex Nuts
JINSHANG hot-dip galvanized hex nuts are supplied in a hexagonal form for a matching threaded connection. They are intended for galvanized bolt assemblies and threaded support hardware. Surface finish is hot-dip galvanized, with coating specification to be confirmed. Thread diameter, nut grade, applicable standard, and coating requirement are confirmed with the selected product drawing or quotation.
Product details ↗
2 imagesBolts, Nuts & Washers

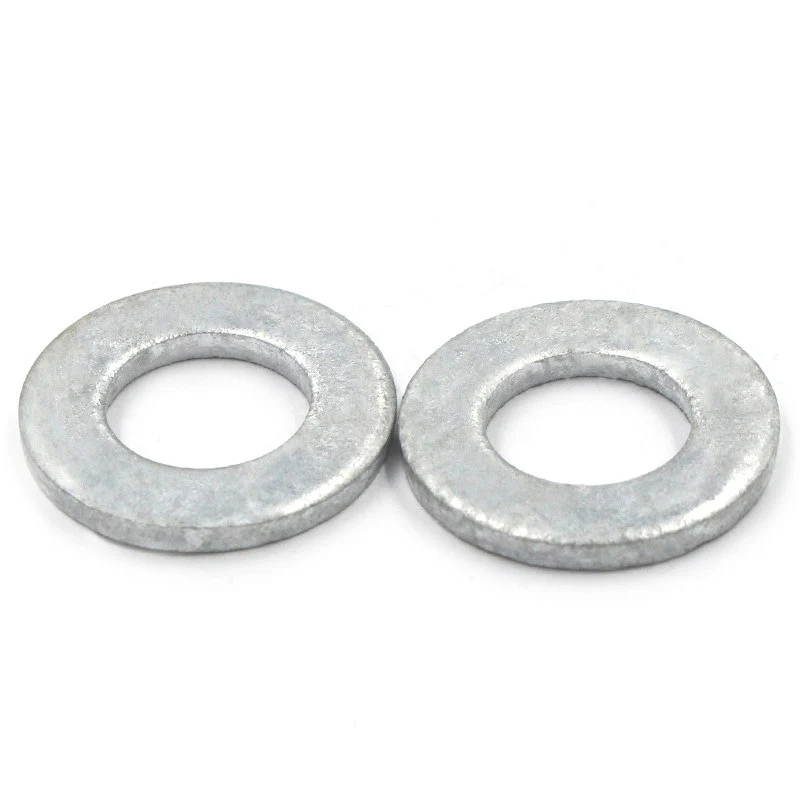

Hot-Dip Galvanized Flat Washers
JINSHANG hot-dip galvanized flat washers have a flat circular form with a central clearance hole. They provide a flat bearing surface beneath a compatible nut or bolt head and are used in mounting bolt assemblies or specified load-spreading washer positions. Surface finish is hot-dip galvanized, with coating specification to be confirmed. Inside diameter, outside diameter, thickness, material, and coating are confirmed with the selected product drawing or quotation.
Product details ↗
4 imagesBolts, Nuts & Washers

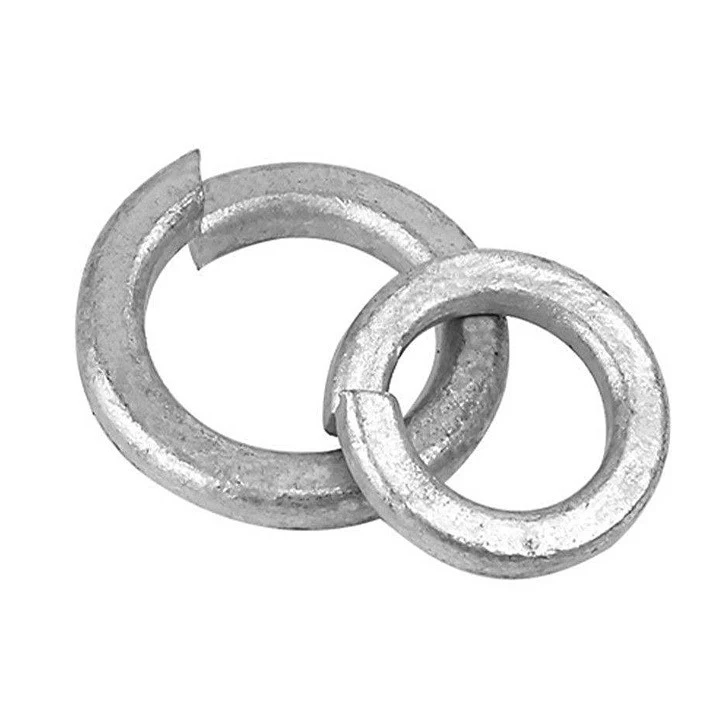

Hot-Dip Galvanized Spring Washers
JINSHANG hot-dip galvanized spring washers have a split-ring shape and are supplied for a specified fastener stack. They are intended for support hardware assemblies and drawing-specified washer stacks. Surface finish is hot-dip galvanized, with coating specification to be confirmed. Inside diameter, section dimensions, material, and coating requirement are confirmed with the selected product drawing or quotation.
Product details ↗
3 imagesBolts, Nuts & Washers

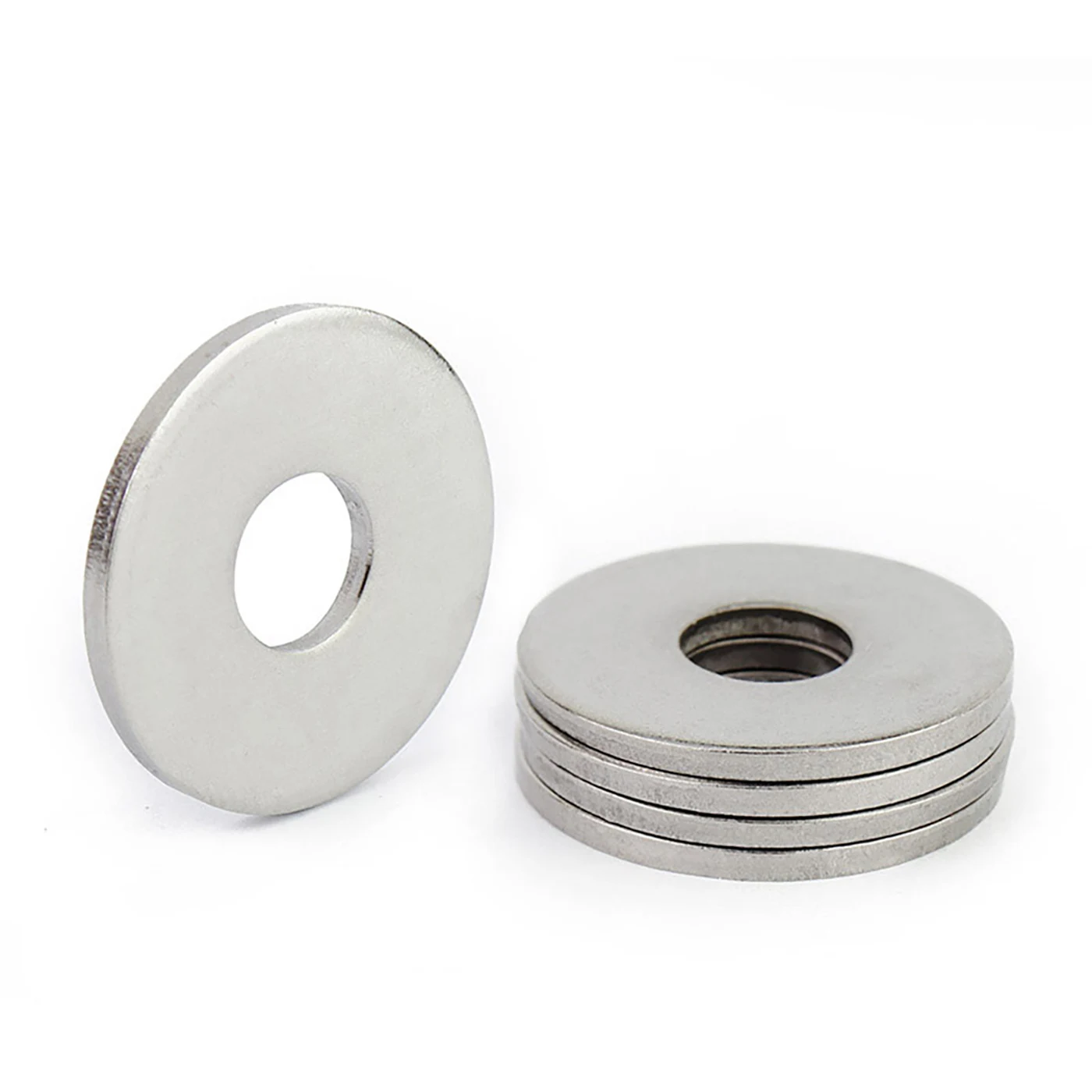

Stainless Steel Flat Washers
JINSHANG stainless steel flat washers have a flat annular profile with a central clearance hole. They provide a stainless steel bearing washer for a threaded joint and are intended for stainless steel bolt sets and PV mounting washer positions. Material family is stainless steel, with exact grade to be confirmed. Inside diameter, outside diameter, thickness, and stainless grade are confirmed with the selected product drawing or quotation.
Product details ↗
2 imagesBolts, Nuts & Washers

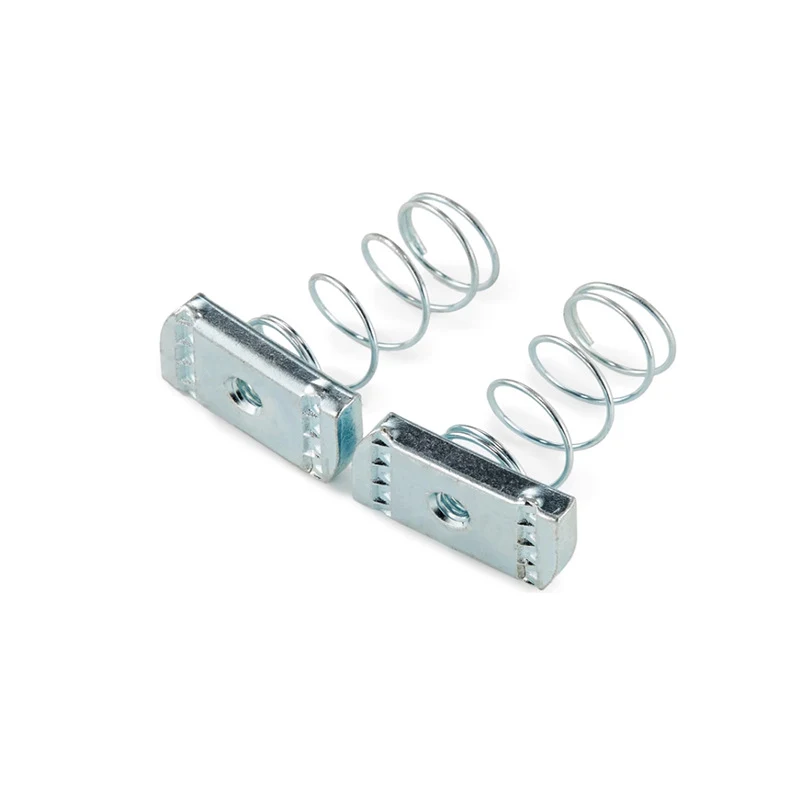

Spring Channel Nuts
JINSHANG spring channel nuts combine a rectangular threaded nut with a coil spring element to position a nut in a compatible mounting channel. They are intended for compatible support channels and rail-mounted fastening points, with two assembly examples supplied. Channel dimensions, thread size, spring length, and nut material are confirmed with the selected product drawing or quotation.
Product details ↗
2 imagesBolts, Nuts & Washers

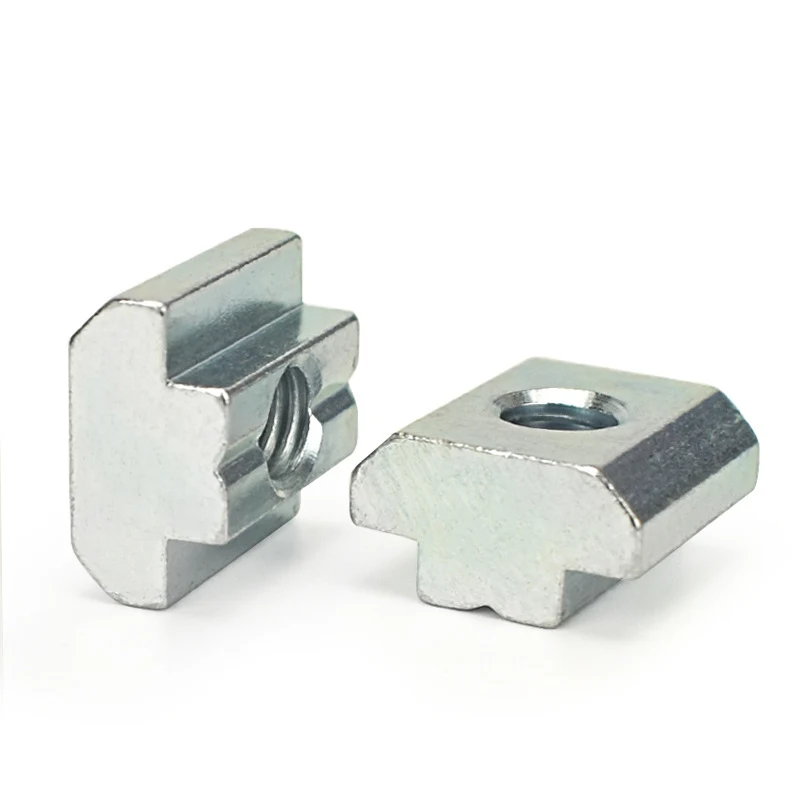

Sliding Channel Nuts
JINSHANG sliding channel nuts provide a threaded fastening point inside a compatible channel or rail. The supplied images show compact block-style parts with threaded openings and grooved or stepped profiles. Select a profile only after confirming its fit with the intended channel and fastening arrangement. Channel cross-section, thread size and pitch, block dimensions, material, surface finish, applicable standards and any rated performance must be confirmed against the approved product drawing or quotation.
Product details ↗Bases & Foundation Hardware
Column plates, mounting bases, cast-in anchors and reinforcing bar for drawing-specified foundations.
1 imageBases & Foundation Hardware

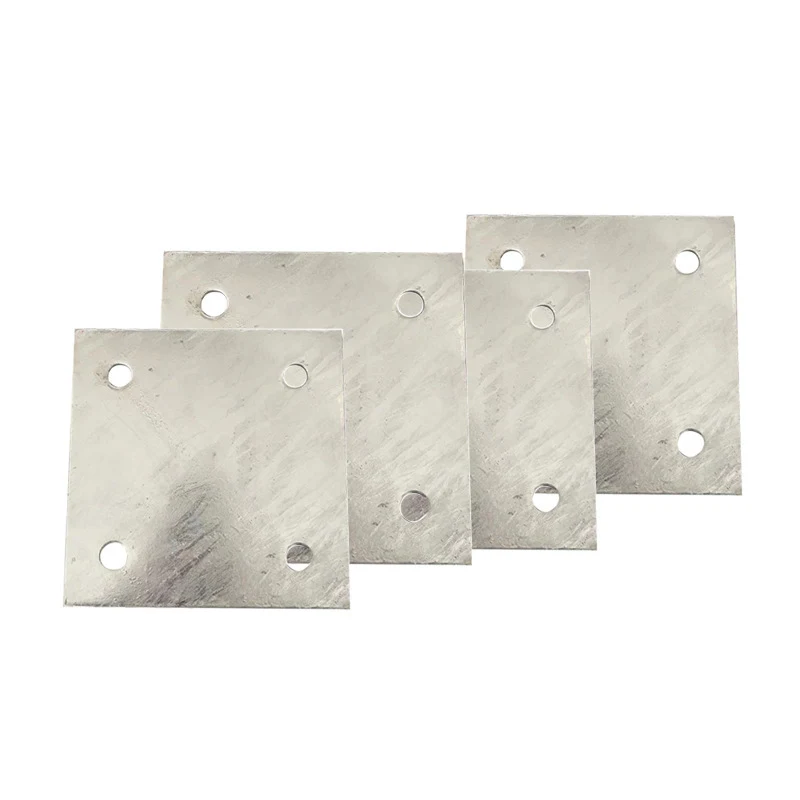

Hot-Dip Galvanized Column Foundation Plates
Provide a plate interface at the foundation side of a support column. The hot-dip galvanized column foundation plate has a flat plate geometry with corner fixing holes pictured and a hot-dip galvanized finish identified. It is used for solar support column foundations and anchored plate connections. Plate dimensions, hole pattern, anchor specification, and column connection detail are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageBases & Foundation Hardware

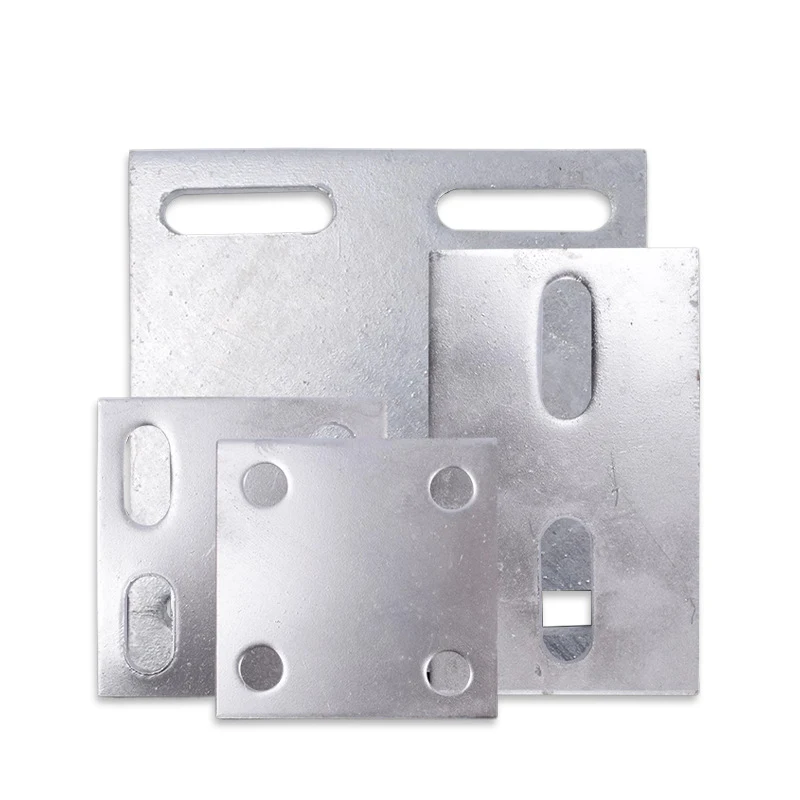

Hot-Dip Galvanized Column Base Plates
Hot-dip galvanized column base plates connect column assemblies to a specified base fixing pattern. They are shown with multiple hole and slot patterns and alternative plate formats, and have a hot-dip galvanized finish identified. They are used for PV mounting column bases and bolted structural base joints. Column section, base dimensions, hole or slot layout, thickness, and coating specification are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageBases & Foundation Hardware

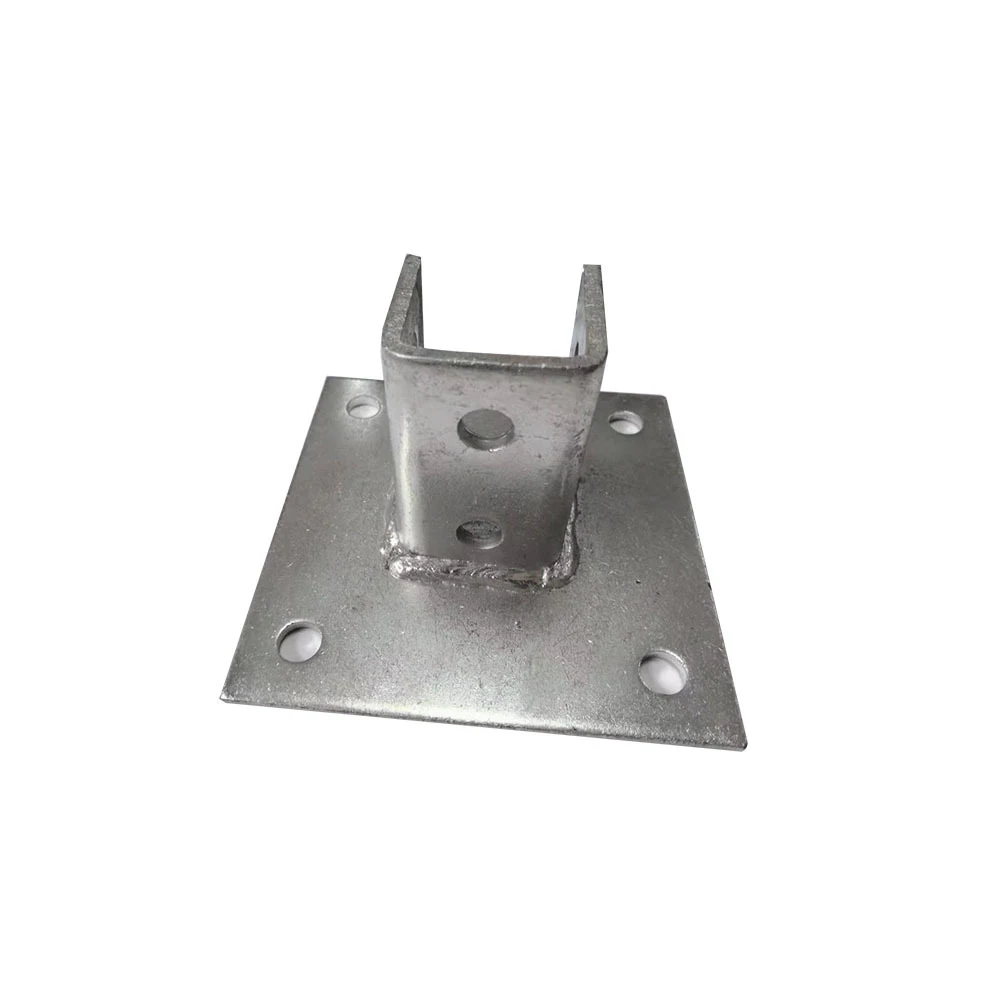

Hot-Dip Galvanized Mounting Bases
Hot-dip galvanized mounting bases provide a base assembly with upright connection tabs. They have a flat foundation plate, upright mounting tabs, and a hot-dip galvanized finish identified. They are used for solar support base connections and upright member attachment. Base footprint, tab spacing, anchor layout, material grade, and coating specification are confirmed with the selected product drawing or quotation.
Product details ↗
2 imagesBases & Foundation Hardware

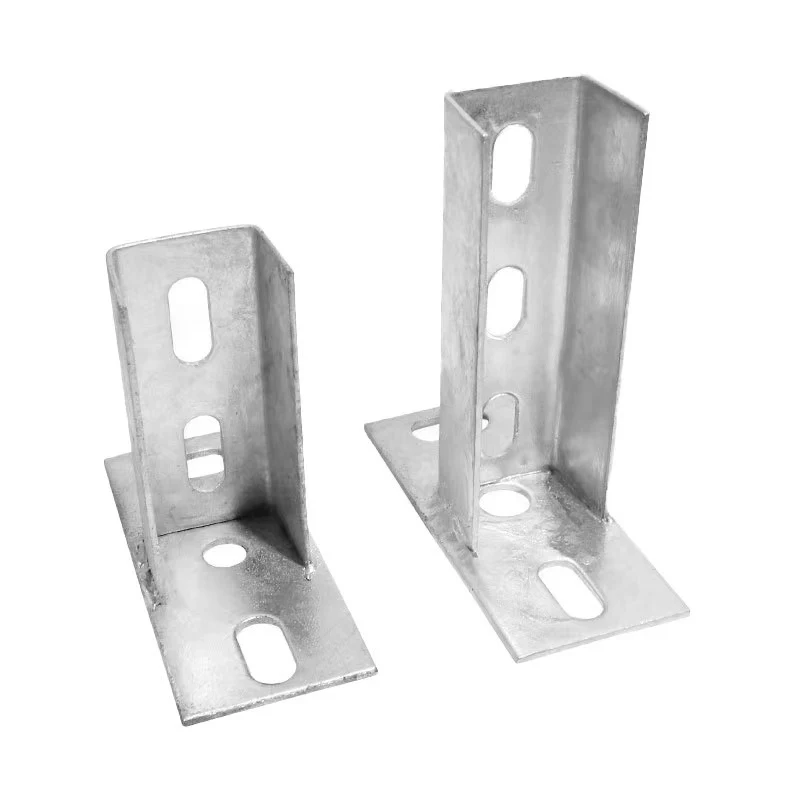

Slotted L-Foot Mounting Bases
Slotted L-foot mounting bases create an L-shaped interface between a mounting surface and support member. They are shown as an L-shaped bracket with elongated fixing slots and different upright heights pictured. They are used for rail mounting foot connections and adjustable support interfaces. Bracket height, base length, slot dimensions, material, and finish are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageBases & Foundation Hardware

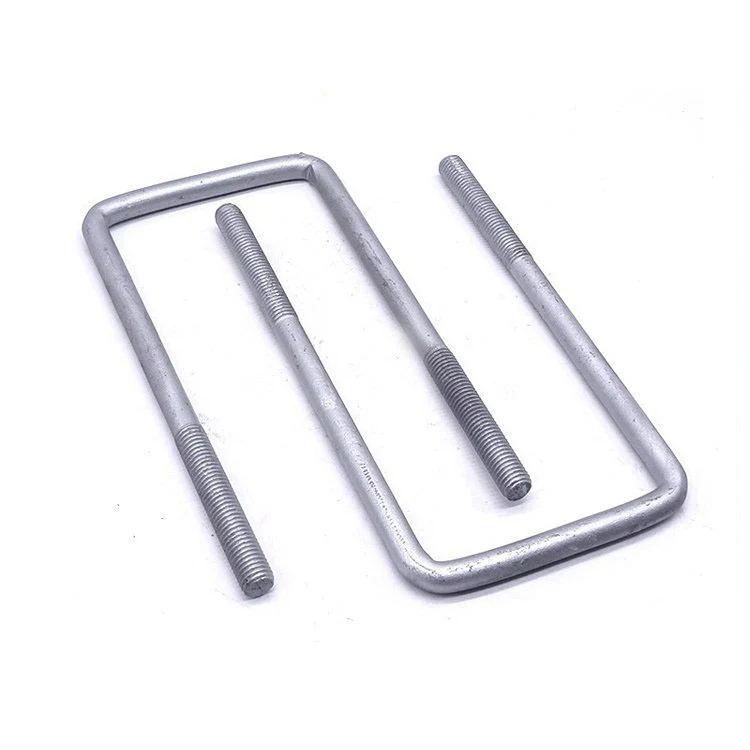

U-Shaped Cast-In Anchor Bolts
U-shaped cast-in anchor bolts form a U-shaped anchoring element for a specified concrete foundation detail. They are shown as a U-shaped bent rod with two projecting ends and a cast-in designation in the source. They are used for designed concrete anchorage and PV support foundation assemblies. Rod diameter, leg length, bend spacing, and embedment design are confirmed with the selected product drawing or quotation.
Product details ↗
2 imagesBases & Foundation Hardware

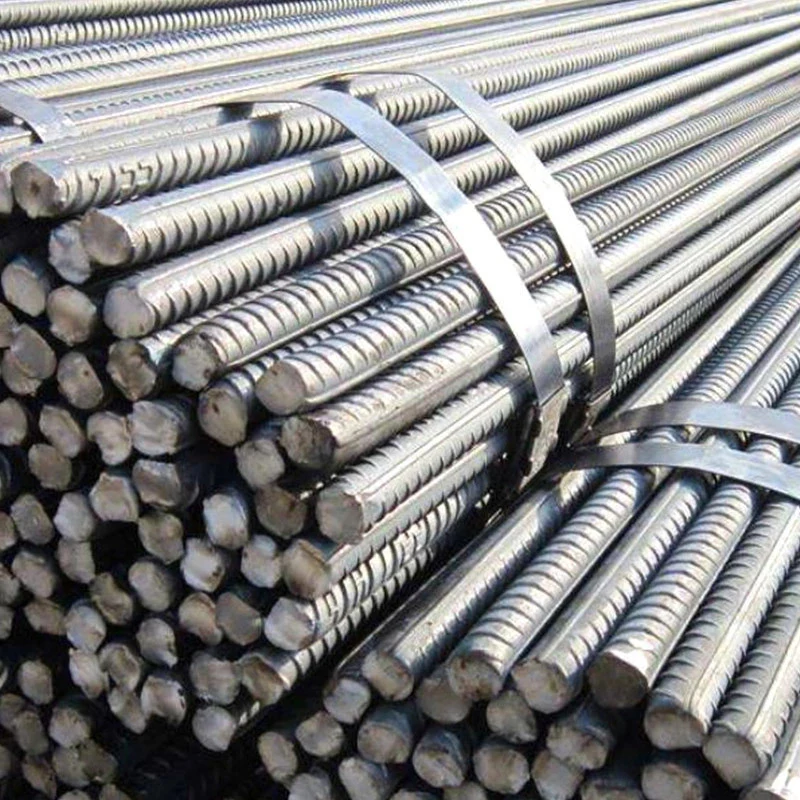

Hot-Dip Galvanized Reinforcing Bar
Hot-dip galvanized reinforcing bar provides ribbed steel bar with a galvanized finish for specified reinforcement work. It is shown with a ribbed surface, hot-dip galvanized designation, and bundled and close-up views. It is used for drawing-specified reinforcement and foundation component procurement. Bar diameter, length, steel grade, and coating specification are confirmed with the selected product drawing or quotation.
Product details ↗Tensioning & Wire Hardware
Tie rods, turnbuckles, strand and rope clips for engineered support and bracing assemblies.
1 imageTensioning & Wire Hardware

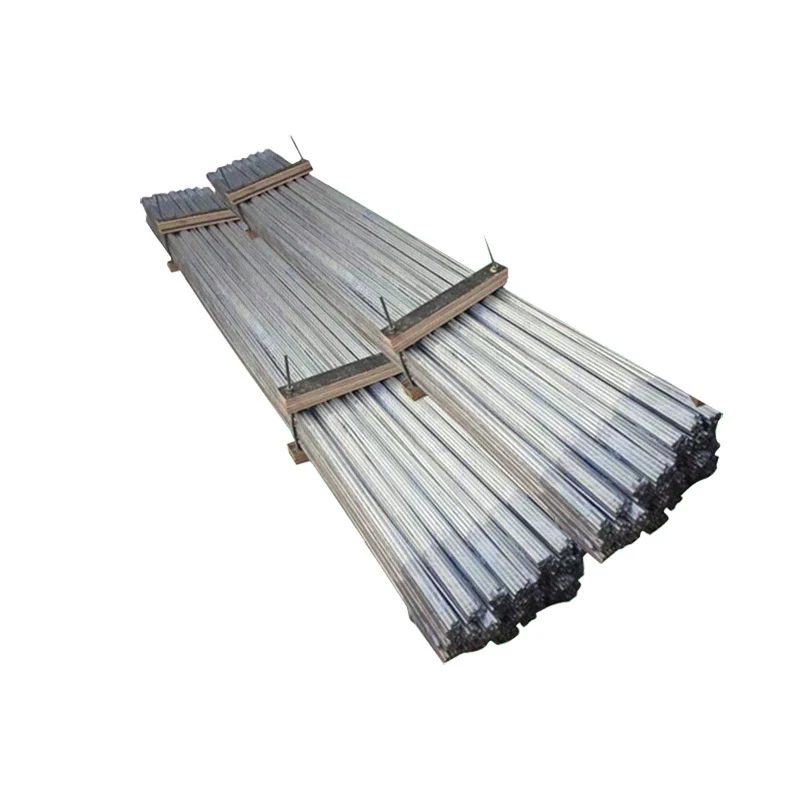

Tie Rods
Tie rods for PV support bracing connect bracing points with a rod-shaped tension member. They are shown in a long rod form with a bundled product image and a tie-rod designation in the source. They are used for PV support bracing and structural tie assemblies. Rod diameter, length, end connection, material, and finish are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageTensioning & Wire Hardware

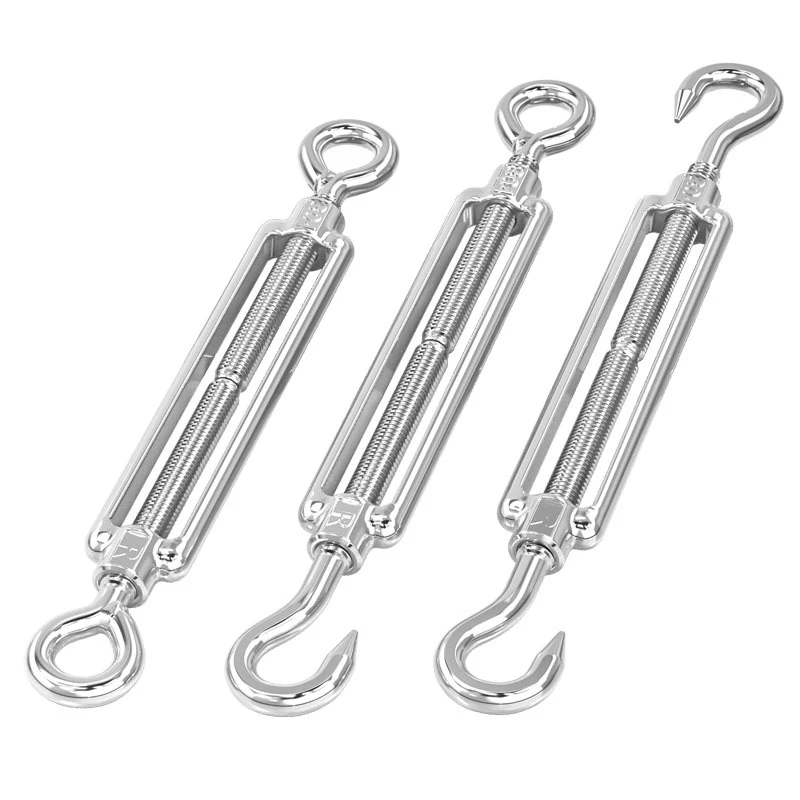

Turnbuckles
Turnbuckles for support bracing tension adjustment change the length of a compatible tension connection for wire and rod tie assemblies. The open-body form uses threaded adjustment ends, with hook and eye examples shown. End fittings, thread size, adjustment range, and working load documentation are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageTensioning & Wire Hardware
Hot-Dip Galvanized UT Tension Clamps
JINSHANG hot-dip galvanized UT tension clamps provide a UT-style tension connection for a compatible wire assembly. They are used for engineered guy-wire connections and tension support hardware. The long U-shaped body uses an adjustable threaded assembly. Wire diameter, clamp dimensions, fastener details, and rated load documentation are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageTensioning & Wire Hardware

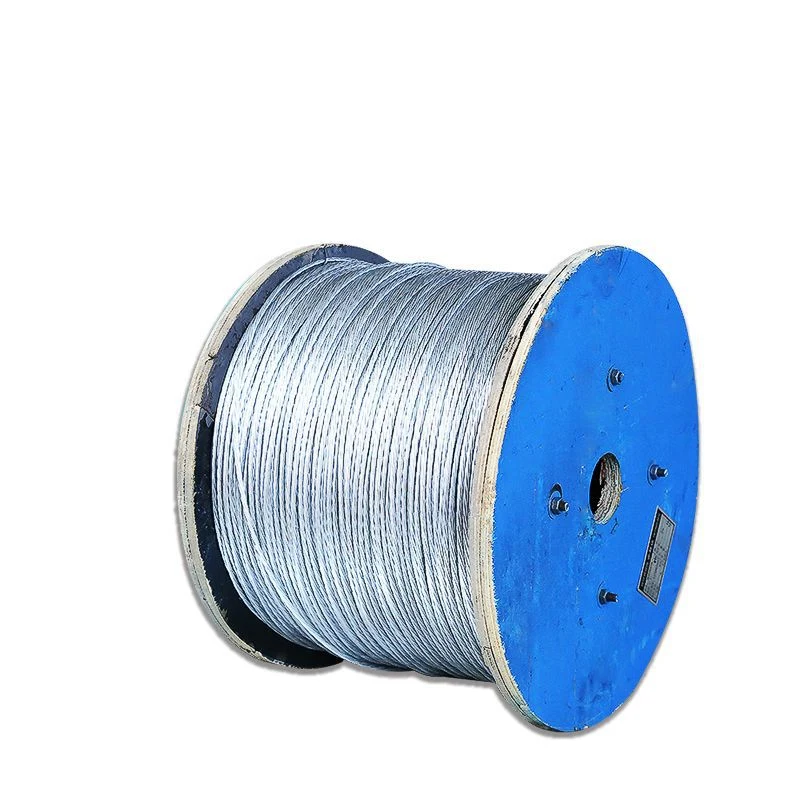

Hot-Dip Galvanized Steel Strand
JINSHANG hot-dip galvanized steel strand is supplied for engineered solar support bracing and specified guy-wire assemblies. It is presented as a continuous wire product in coiled form, with a galvanized finish identified. Strand diameter, wire construction, strength grade, reel length, and coating specification are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageTensioning & Wire Hardware

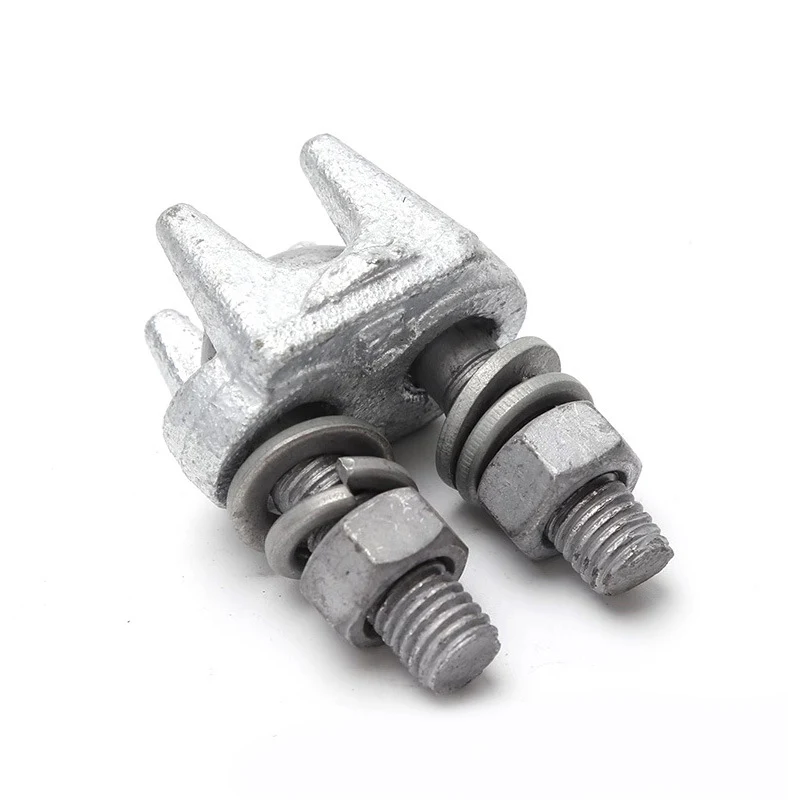

Hot-Dip Galvanized Wire Rope Clips
JINSHANG hot-dip galvanized wire rope clips form a bolted clamping connection around a compatible wire rope. The U-bolt and saddle assembly uses two threaded ends, with a hot-dip galvanized finish identified. They are used for engineered wire-rope terminations and support bracing cable assemblies. Rope diameter, clip size, quantity and spacing, and assembly torque are confirmed with the selected product drawing or quotation.
Product details ↗
1 imageTensioning & Wire Hardware

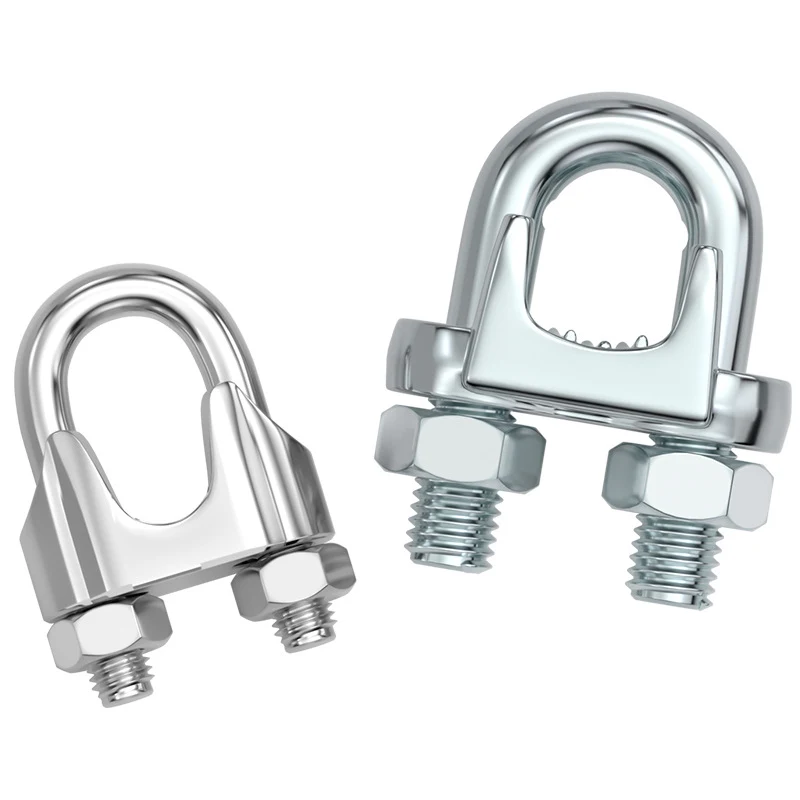

Stainless Steel Wire Rope Clips
JINSHANG stainless steel wire rope clips clamp a matching wire rope using a stainless steel clip assembly. The U-shaped bolt, saddle, and paired nuts are pictured. They are used for wire rope connection assemblies and drawing-specified bracing terminations. Rope diameter, stainless grade, clip dimensions, and assembly requirements are confirmed with the selected product drawing or quotation.
Product details ↗PV Electrical Accessories
Photovoltaic cable, grounding leads and connector pairs for specified electrical systems.
1 imagePV Electrical Accessories

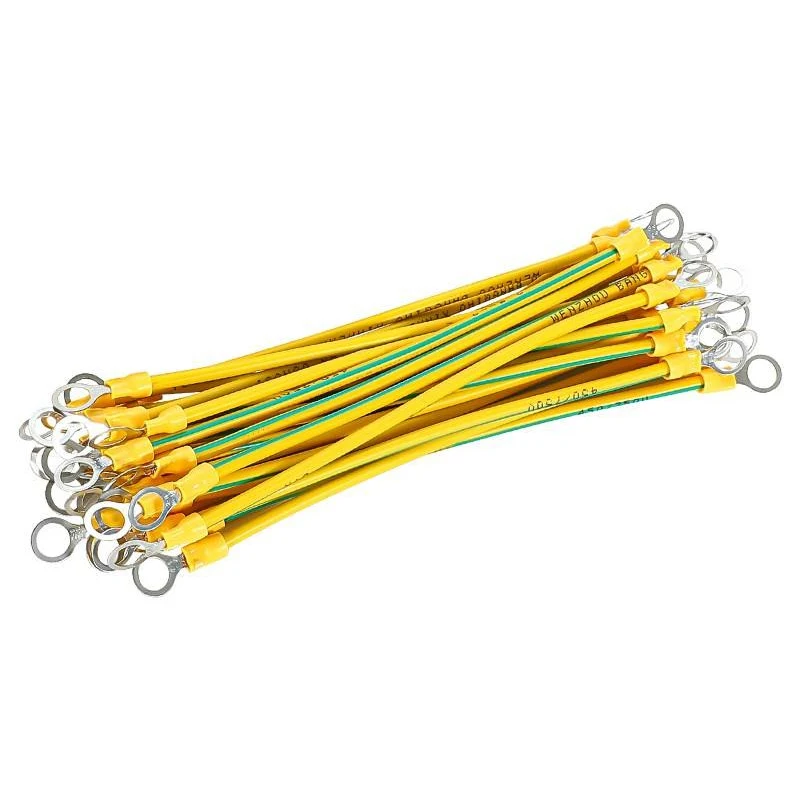

PV Grounding Leads
JINSHANG PV grounding leads are supplied to connect specified bonding points with a terminated grounding lead. Examples include leads with green and yellow insulation and ring-terminal ends. They are intended for engineered PV bonding circuits and equipment grounding connections. Conductor cross-section, lead length, terminal hole size, and electrical compliance requirements are confirmed with the selected product drawing or quotation.
Product details ↗
2 imagesPV Electrical Accessories

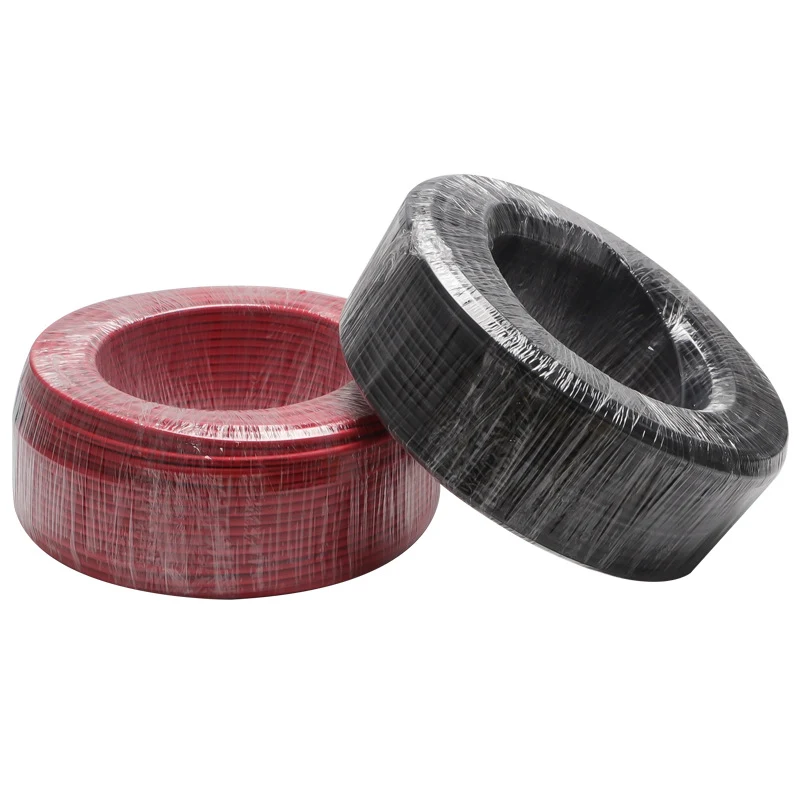

Photovoltaic Cable
JINSHANG photovoltaic cable is supplied for a specified photovoltaic electrical circuit. It is intended for designed PV DC wiring and solar array cable procurement. Product examples include red and black cable in a coiled supply form with two reference images. Conductor cross-section, voltage rating, cable standard, and reel length are confirmed with the selected product drawing or quotation.
Product details ↗
4 imagesPV Electrical Accessories

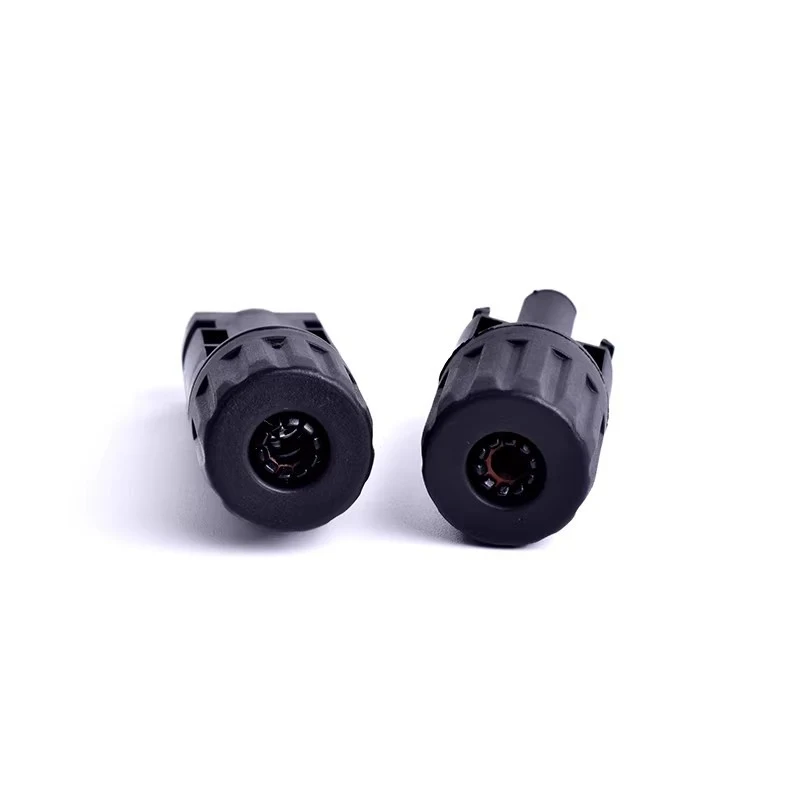

PV Connector Pairs
Solar PV connector pairs provide a paired format for a compatible photovoltaic cable system. Share the cable and system requirements so the pairing can be reviewed for your application.
Product details ↗
2 imagesPV Electrical Accessories
Stainless Steel Knurled Disc Washers
Radial knurl teeth on the contact face cut through paint, anodising and oxide film so a bolted joint keeps electrical continuity between PV module frames, rails and support structures. The disc-spring section also stores preload, so the connection stays tight through thermal cycling. Washers are supplied in stainless steel with a pickled finish; tooth pattern, outer diameter and thickness follow the selected drawing.
Product details ↗Sealing & Drainage
Profiled sealing strips and drainage channels for compatible photovoltaic mounting interfaces.
1 imageSealing & Drainage

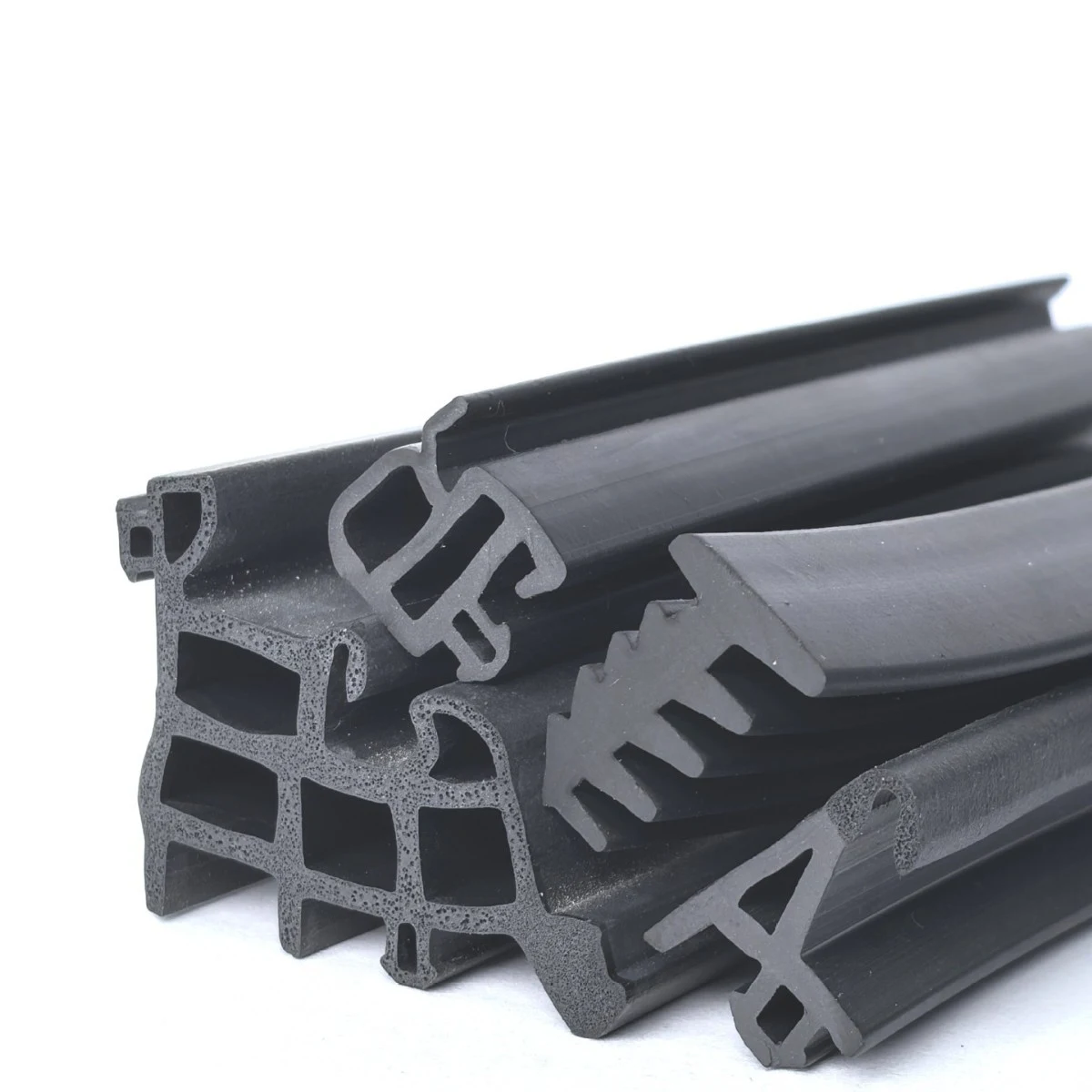

Waterproof Sealing Strips
Solar mounting waterproof sealing strips fit a matching joint profile with a flexible sealing strip. Share the profile and assembly details so the fit can be reviewed before ordering.
Product details ↗
1 imageSealing & Drainage

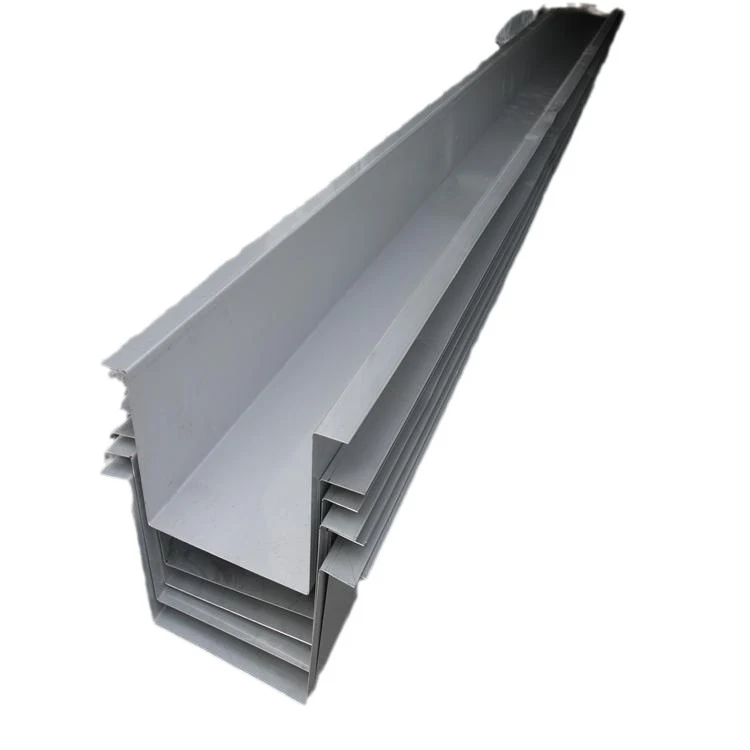

Water Drainage Channels
Solar mounting drainage channels direct water along a specified route within a mounting assembly. Share the channel profile and intended layout so the fit can be reviewed for the project.
Product details ↗
