Clamps & Roof Attachments
Standing Seam Roof Clamps
JINSHANG standing seam roof clamps connect compatible PV mounting hardware to compatible standing-seam roof profiles. The supplied images show D-type and F-type clamp forms, slotted connection plates and two bolt sets for each pictured variant. Roof seam profile, clamp type, fastener configuration, materials and project loading must be checked against the roof manufacturer’s guidance, the selected product drawing and the PV system design before ordering.

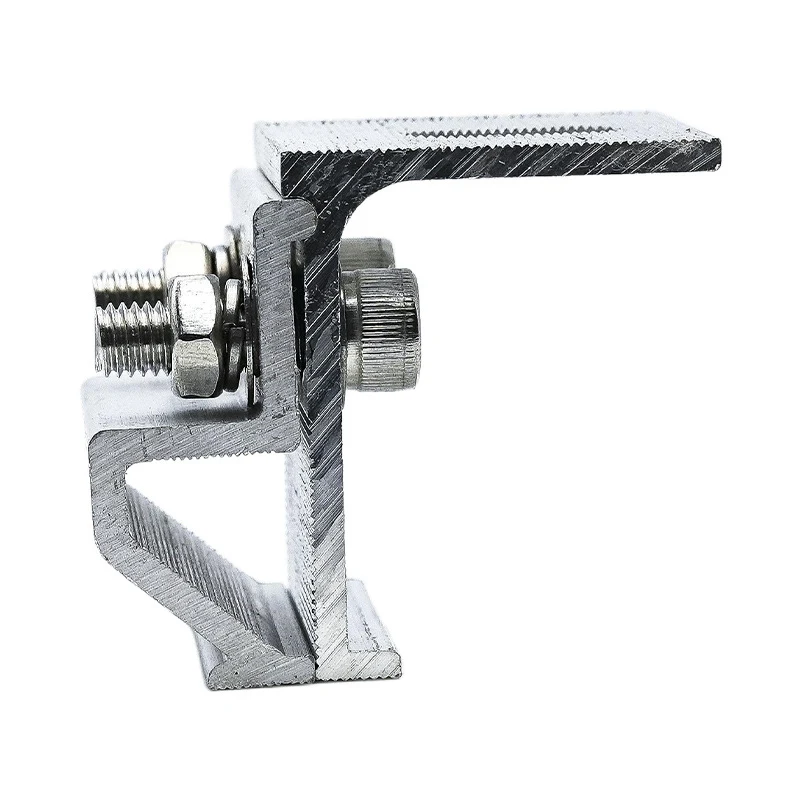

D-type and F-type clamp forms shown in the supplied images

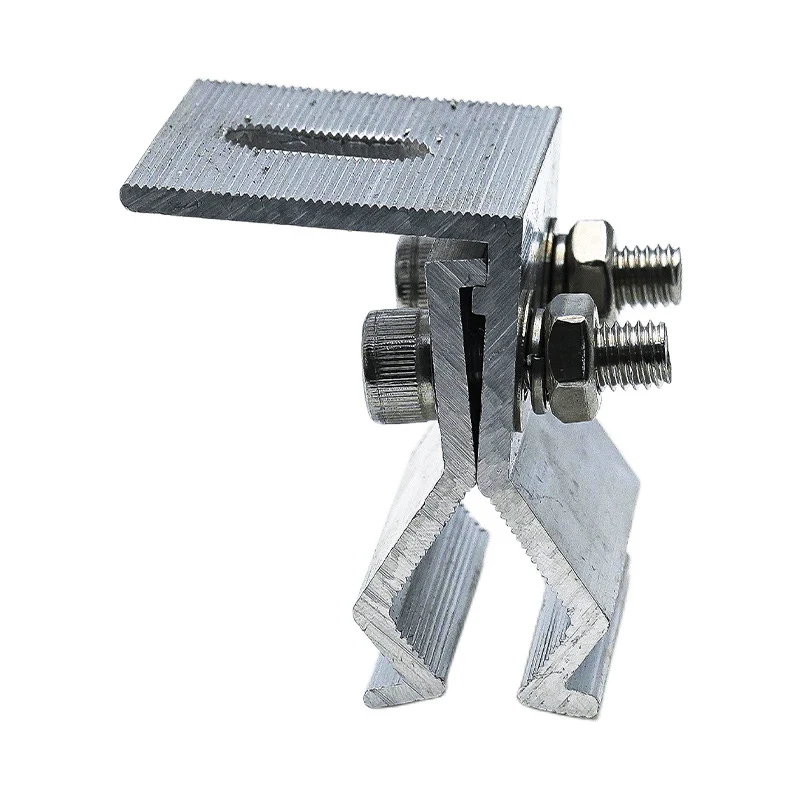

Slotted connection openings shown on the pictured clamp plates
Source filenames specify two bolt sets for each pictured variant
Select the clamp only after matching its gripping geometry to the roof seam profile
Catalog reference: JS-002
01 / PRODUCT DETAILS
Features & configuration
JINSHANG standing seam roof clamps connect compatible PV mounting hardware to compatible standing-seam roof profiles. The supplied images show D-type and F-type clamp forms, slotted connection plates and two bolt sets for each pictured variant. Roof seam profile, clamp type, fastener configuration, materials and project loading must be checked against the roof manufacturer’s guidance, the selected product drawing and the PV system design before ordering. The reference images show the available product form. Match the connection geometry and specified material to your project before ordering.
- D-type and F-type clamp forms shown in the supplied images.
- Slotted connection openings shown on the pictured clamp plates.
- Source filenames specify two bolt sets for each pictured variant.
- Select the clamp only after matching its gripping geometry to the roof seam profile.
02 / TECHNICAL INFORMATION
Specifications
| Product type | Standing Seam Roof Clamps |
| Pictured variants | D type and F type; source filenames specify two bolt sets |
| Roof seam profile | Confirm with the selected product drawing or quotation |
| D or F variant | Confirm with the selected product drawing or quotation |
| Clamp dimensions | Confirm with the selected product drawing or quotation |
| Bolt specification | Confirm with the selected product drawing or quotation |
Numerical dimensions and performance ratings are not specified in the supplied product record. Confirm the listed requirements against a quotation and approved drawing.
03 / PROJECT FIT
Applications
PV roof attachment on a compatible standing-seam metal roof
Connection of compatible mounting hardware to the seam where approved by the roof and PV system documentation
Project selection based on roof-profile drawings and the mounting-system design
Application guidance describes the component's typical role. Suitability depends on the complete system design, mating parts and project requirements.
