Spring Channel Nuts

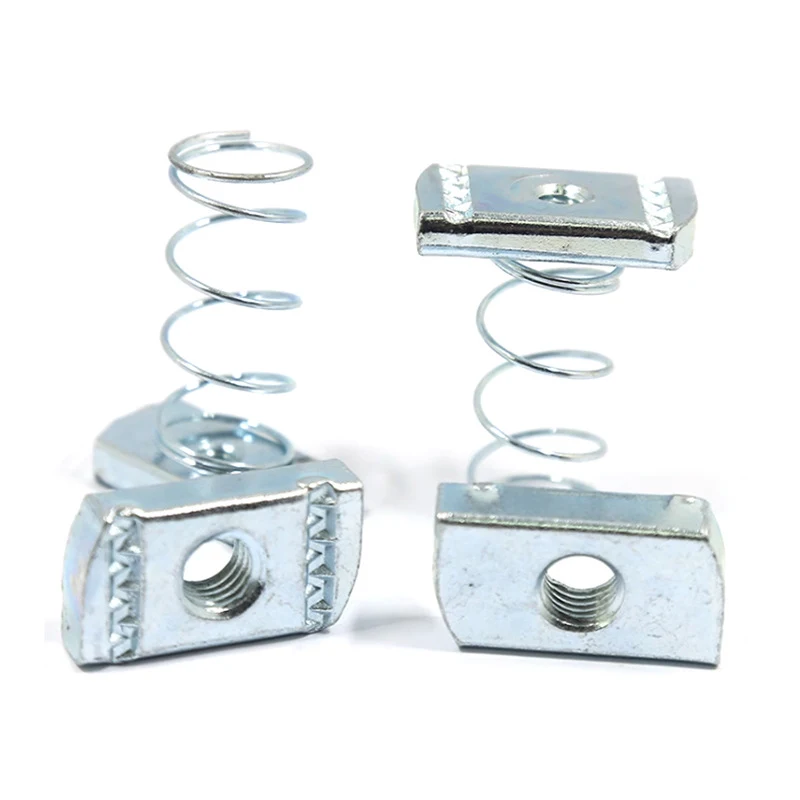

JINSHANG spring channel nuts combine a rectangular threaded nut with a coil spring element to position a nut in a compatible mounting channel. They are intended for compatible support channels and rail-mounted fastening points, with two assembly examples supplied. Channel dimensions, thread size, spring length, and nut material are confirmed with the selected product drawing or quotation.
Coil spring element
Rectangular threaded nut
Two assembly examples supplied
Catalog reference: JS-058
01 / PRODUCT DETAILS
Features & configuration
JINSHANG spring channel nuts combine a rectangular threaded nut with a coil spring element to position a nut in a compatible mounting channel. They are intended for compatible support channels and rail-mounted fastening points, with two assembly examples supplied. Channel dimensions, thread size, spring length, and nut material are confirmed with the selected product drawing or quotation. The reference images show the available product form. Match the connection geometry and specified material to your project before ordering.
- Coil spring element.
- Rectangular threaded nut.
- Two assembly examples supplied.
02 / TECHNICAL INFORMATION
Specifications
| Product type | Spring Channel Nuts |
| Channel dimensions | Confirm with the selected product drawing or quotation |
| Thread size | Confirm with the selected product drawing or quotation |
| Spring length | Confirm with the selected product drawing or quotation |
| Nut material | Confirm with the selected product drawing or quotation |
Numerical dimensions and performance ratings are not specified in the supplied product record. Confirm the listed requirements against a quotation and approved drawing.
03 / PROJECT FIT
Applications
Compatible support channels
Rail-mounted fastening points
Application guidance describes the component's typical role. Suitability depends on the complete system design, mating parts and project requirements.
