Module Support Plate Profiles
Solar module support plate profiles provide a range of shaped plates for a drawing-matched module interface. Share the mating profile and fixing details so the form can be checked against the assembly drawing.

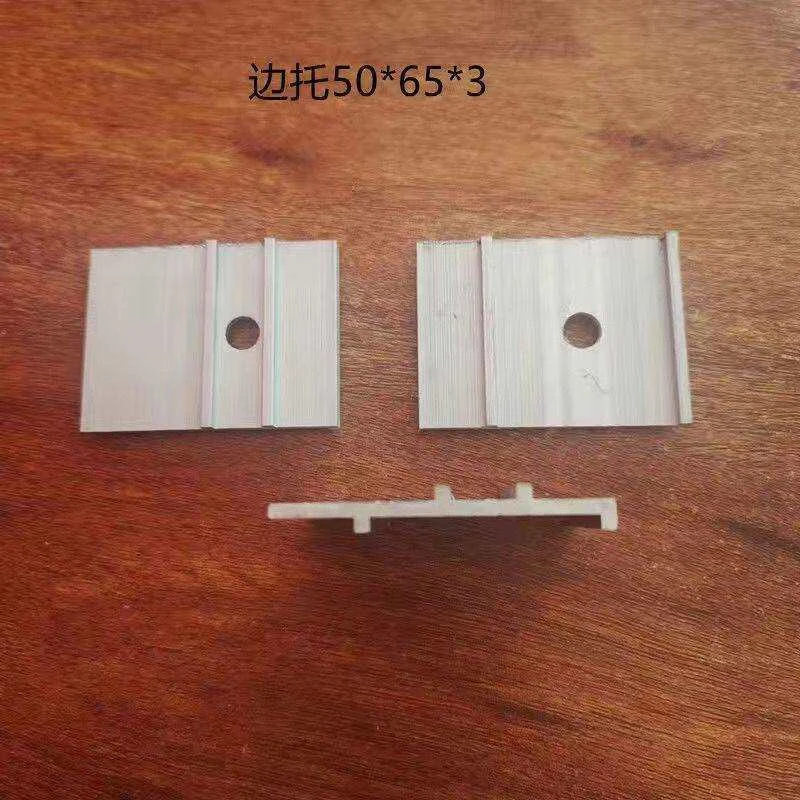

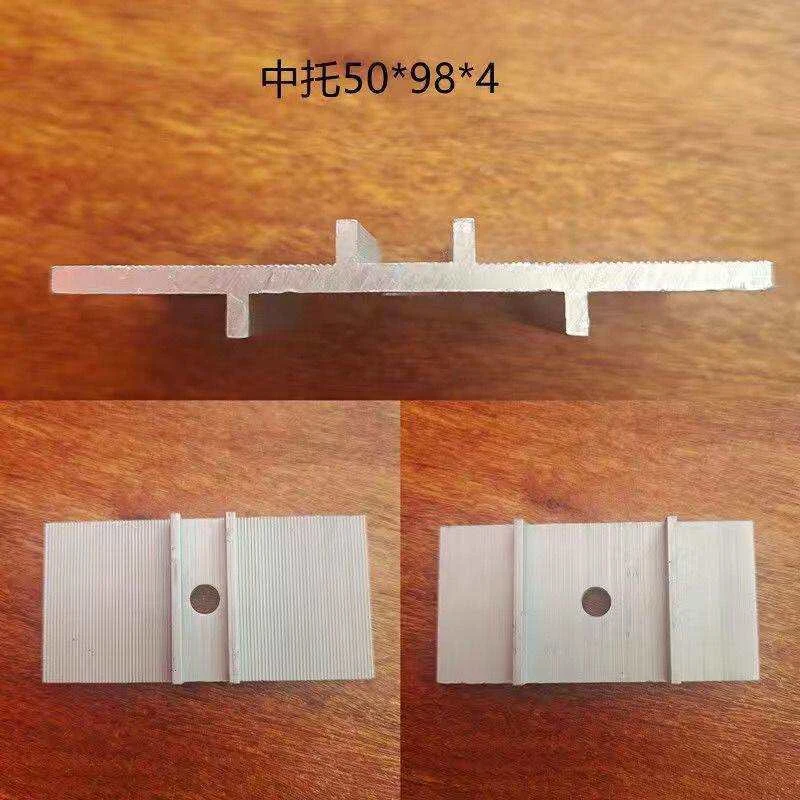

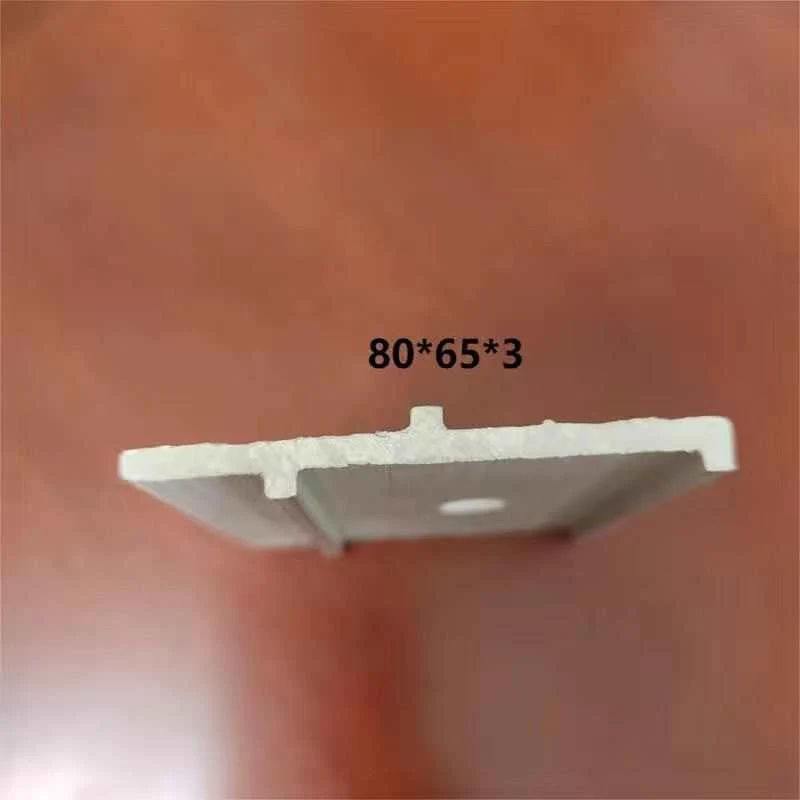

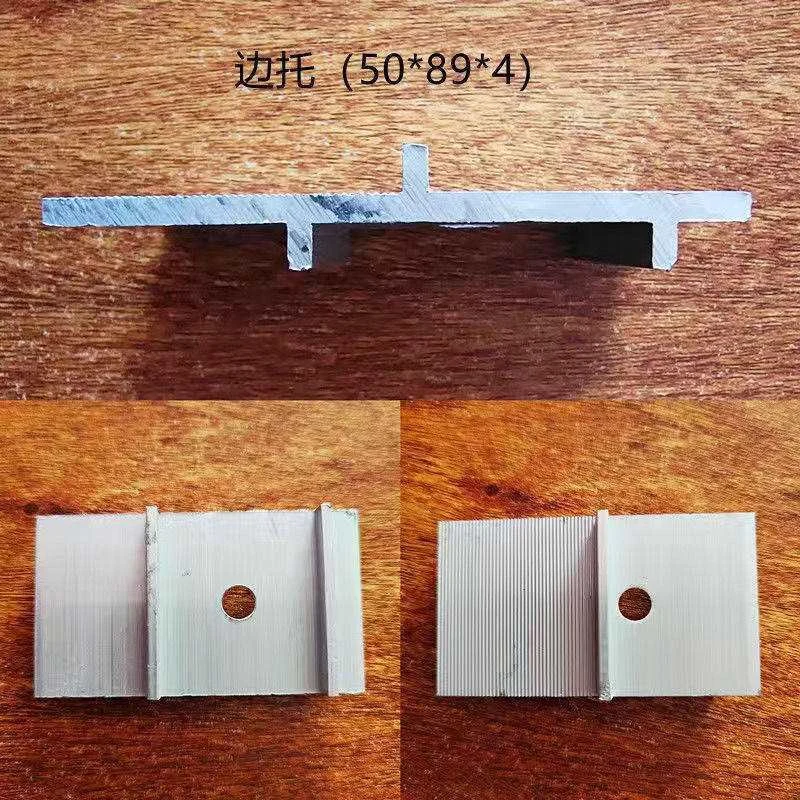

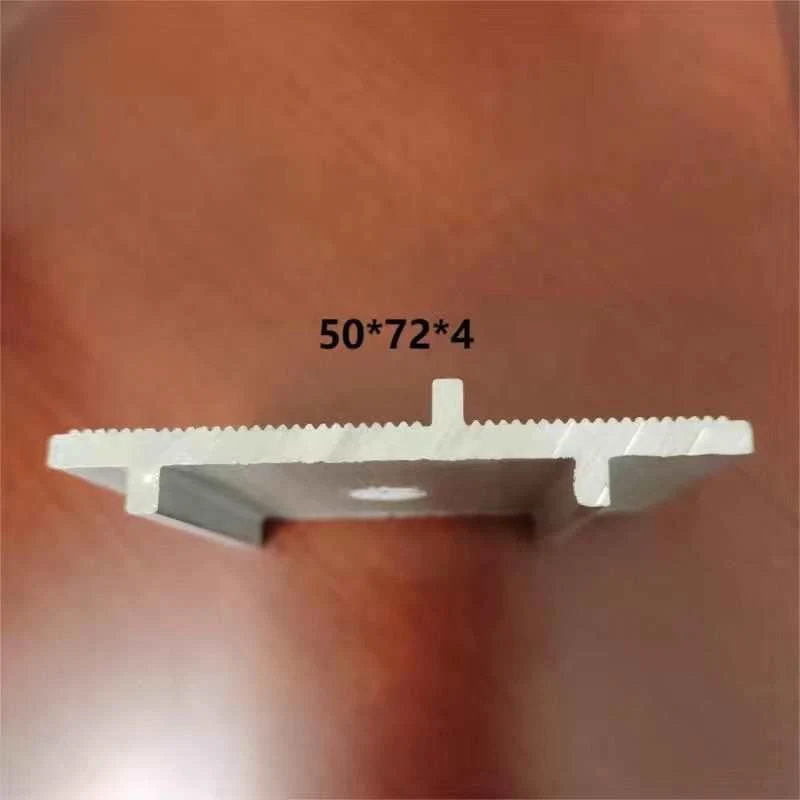

Six supplied profile images
Different shoulder and rib layouts
Image labels distinguish individual examples
Catalog reference: JS-066
01 / PRODUCT DETAILS
Features & configuration
Solar module support plate profiles provide a range of shaped plates for a drawing-matched module interface. Share the mating profile and fixing details so the form can be checked against the assembly drawing. The reference images show the available product form. Match the connection geometry and specified material to your project before ordering.
- Six supplied profile images.
- Different shoulder and rib layouts.
- Image labels distinguish individual examples.
02 / TECHNICAL INFORMATION
Specifications
| Product type | Module Support Plate Profiles |
| Exact profile selection | Confirm with the selected product drawing or quotation |
| Dimensions and units | Confirm with the selected product drawing or quotation |
| Hole layout | Confirm with the selected product drawing or quotation |
| Material and intended position | Confirm with the selected product drawing or quotation |
Numerical dimensions and performance ratings are not specified in the supplied product record. Confirm the listed requirements against a quotation and approved drawing.
03 / PROJECT FIT
Applications
Specified module support positions
Profile-matched PV mounting assemblies
Application guidance describes the component's typical role. Suitability depends on the complete system design, mating parts and project requirements.
