Rails & Connection Plates
Hot-Dip Galvanized Slotted Plates

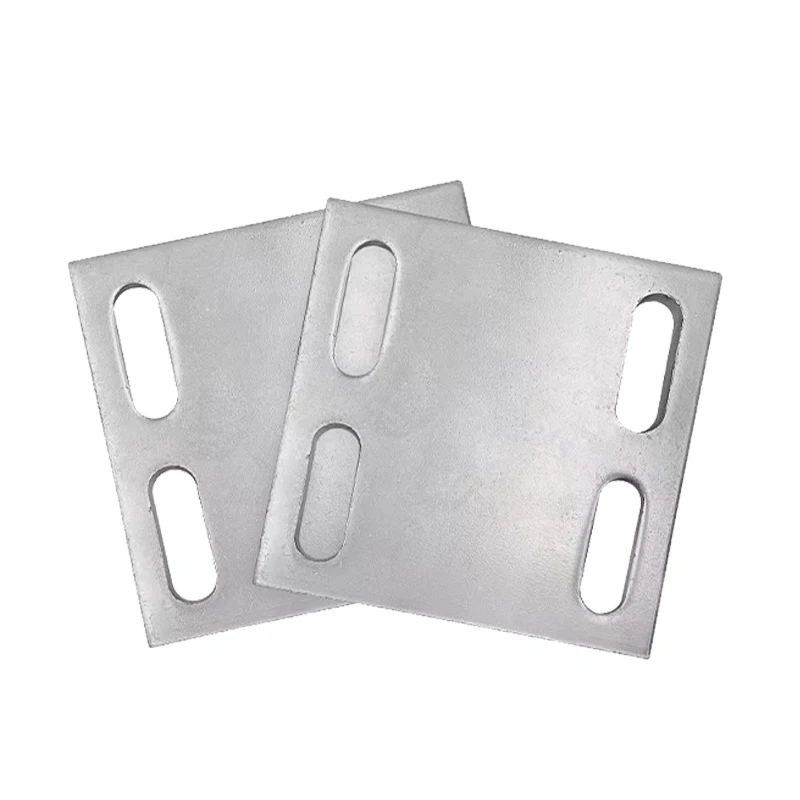

Connect structural members using elongated holes for positioning. The hot-dip galvanized slotted plate is identified with a hot-dip galvanized finish and offered in flat and formed examples in the supplied images. It is used for PV support adjustment points and drawing-matched structural connections. Surface finish is hot-dip galvanized; coating specification, flat or formed style, plate dimensions, slot centers, and thickness are confirmed with the selected product drawing or quotation.
Hot-dip galvanized finish identified
Slotted hole patterns
Flat and formed examples in the supplied images
Catalog reference: JS-019
01 / PRODUCT DETAILS
Features & configuration
Connect structural members using elongated holes for positioning. The hot-dip galvanized slotted plate is identified with a hot-dip galvanized finish and offered in flat and formed examples in the supplied images. It is used for PV support adjustment points and drawing-matched structural connections. Surface finish is hot-dip galvanized; coating specification, flat or formed style, plate dimensions, slot centers, and thickness are confirmed with the selected product drawing or quotation. The reference images show the available product form. Match the connection geometry and specified material to your project before ordering.
- Hot-dip galvanized finish identified.
- Slotted hole patterns.
- Flat and formed examples in the supplied images.
02 / TECHNICAL INFORMATION
Specifications
| Product type | Hot-Dip Galvanized Slotted Plates |
| Surface finish | Hot-dip galvanized; coating specification to be confirmed |
| Flat or formed style | Confirm with the selected product drawing or quotation |
| Plate dimensions | Confirm with the selected product drawing or quotation |
| Slot centers | Confirm with the selected product drawing or quotation |
| Thickness | Confirm with the selected product drawing or quotation |
Numerical dimensions and performance ratings are not specified in the supplied product record. Confirm the listed requirements against a quotation and approved drawing.
03 / PROJECT FIT
Applications
PV support adjustment points
Drawing-matched structural connections
Application guidance describes the component's typical role. Suitability depends on the complete system design, mating parts and project requirements.
04 / PRODUCT PHOTOGRAPHY
Image list
Related components
Browse category ↗
