Stainless Steel Flat Washers
JINSHANG stainless steel flat washers have a flat annular profile with a central clearance hole. They provide a stainless steel bearing washer for a threaded joint and are intended for stainless steel bolt sets and PV mounting washer positions. Material family is stainless steel, with exact grade to be confirmed. Inside diameter, outside diameter, thickness, and stainless grade are confirmed with the selected product drawing or quotation.
Flat annular profile
Central clearance hole
Multiple sizes pictured
Catalog reference: JS-057
01 / PRODUCT DETAILS
Features & configuration
JINSHANG stainless steel flat washers have a flat annular profile with a central clearance hole. They provide a stainless steel bearing washer for a threaded joint and are intended for stainless steel bolt sets and PV mounting washer positions. Material family is stainless steel, with exact grade to be confirmed. Inside diameter, outside diameter, thickness, and stainless grade are confirmed with the selected product drawing or quotation. The reference images show the available product form. Match the connection geometry and specified material to your project before ordering.
- Flat annular profile.
- Central clearance hole.
- Multiple sizes pictured.
02 / TECHNICAL INFORMATION
Specifications
| Product type | Stainless Steel Flat Washers |
| Material family | Stainless steel; exact grade to be confirmed |
| Inside diameter | Confirm with the selected product drawing or quotation |
| Outside diameter | Confirm with the selected product drawing or quotation |
| Thickness | Confirm with the selected product drawing or quotation |
| Stainless grade | Confirm with the selected product drawing or quotation |
Numerical dimensions and performance ratings are not specified in the supplied product record. Confirm the listed requirements against a quotation and approved drawing.
03 / PROJECT FIT
Applications
Stainless steel bolt sets
PV mounting washer positions
Application guidance describes the component's typical role. Suitability depends on the complete system design, mating parts and project requirements.

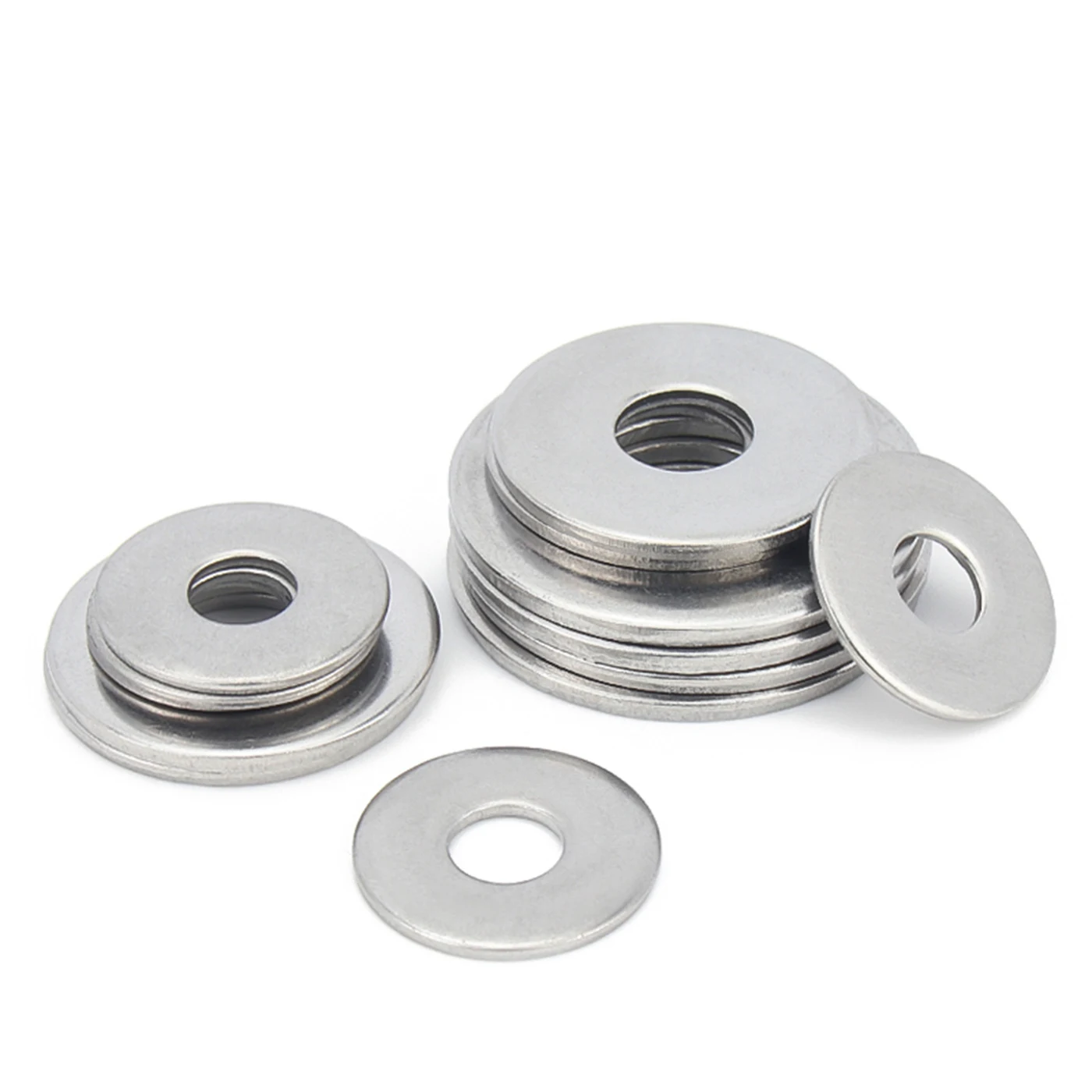

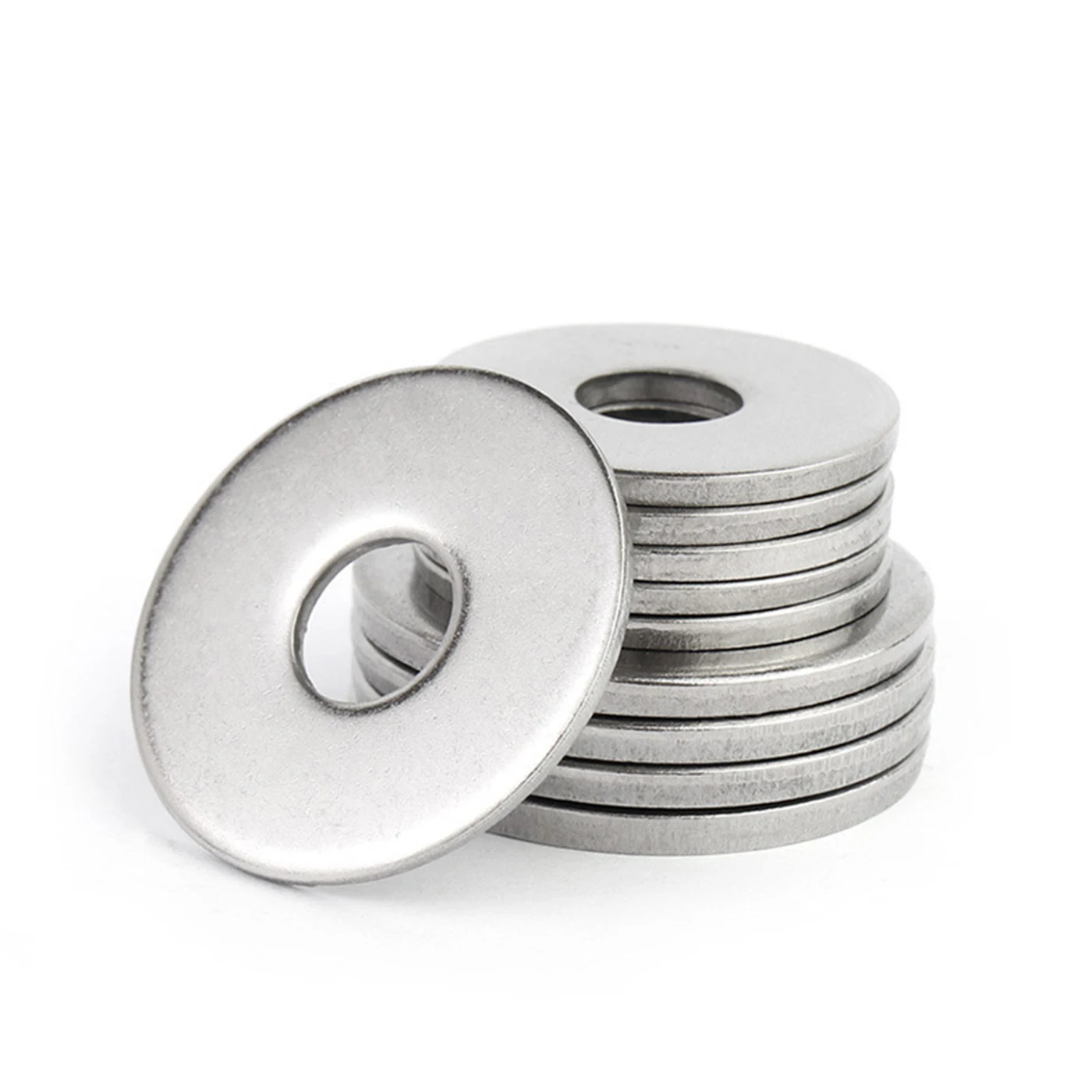

04 / PRODUCT PHOTOGRAPHY
